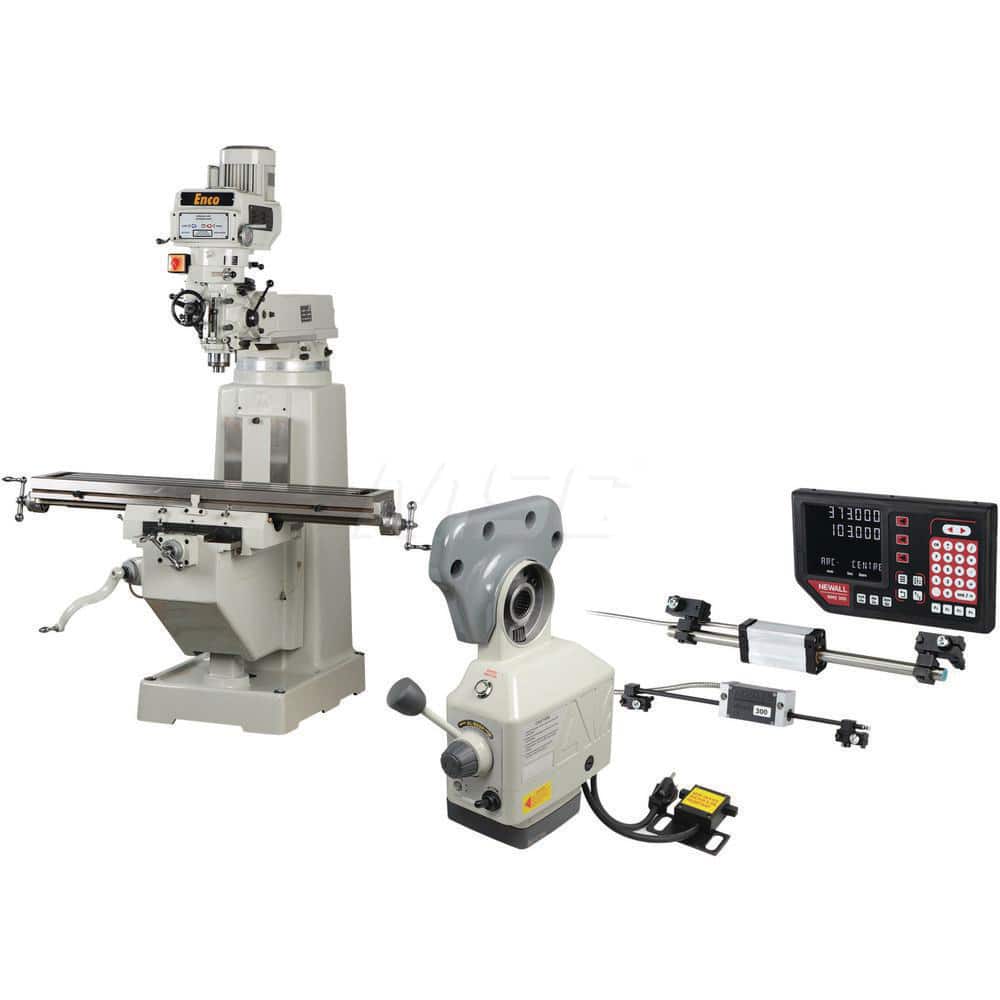

Knee Milling Machine: 6 x 24″, 3 hp, Variable Speed Pulley Control, 3 Phase 65 to 4,500 RPM, R8 Spindle Taper
Item #: 30393193
Brand: Enco
Model #: 5012958/4104673
Product Specifications
| Minimum Spindle to Column Distance (Decimal Inch) | 6.0000 |
| Minimum Spindle to Column Distance (Inch) | 6 in |
| Minimum Spindle to Column Distance (mm) | 140.00 |
| Minimum Spindle to Table Distance (Decimal Inch) | 1.0000 |
| Minimum Spindle to Table Distance (mm) | 20.00 |
| Maximum Spindle to Table Distance (Inch) | 16.0000 |
| Maximum Spindle to Table Distance (mm) | 405.00 |
| Maximum Spindle to Table Distance (Decimal Inch) | 16.0000 |
| Minimum Spindle Speed | 65 RPM |
| Maximum Spindle Speed | 4500 RPM |
| Forward Head Tilt (Degrees) | 45 |
| Phase | 3 |
| Backward Head Tilt (Degrees) | 45 |
| Left-Hand Head Tilt (Degrees) | 90 |
| Left-hand Head Tilt | 90.0 ? |
| Right-Hand Head Tilt (Degrees) | 90 |
| Right-hand Head Tilt | 90.0 ? |
| Cross Travel (Decimal Inch) | 16.0000 |
| Cross Travel | 16.0 in |
| Longitudinal Travel | 36.0 in |
| Longitudinal Travel (Decimal Inch) | 36.0000 |
| Knee Travel (Decimal Inch) | 15.0000 |
| Knee Travel | 15.0 in |
| Quill Diameter (Inch) | 3 |
| Quill Diameter (mm) | 85.73 |
| Quill Diameter (Decimal Inch) | 3.0000 |
| Horsepower | 3.00 |
| Voltage | 220 |
| Table Load Capacity (kg) | 280.00 |
| Table Load Capacity (Lb.) | 618.00 |
| Table Length (Inch) | 54 |
| Table Width (Inch) | 10 |
| Ram Turret Swivel (Degrees) | 360 |
| Ram Travel Length (Decimal Inch) | 18.0000 |
| Ram Travel Length (mm) | 460.00 |
| Ram Travel Length (Inch) | 18 |
| Spindle Speed Control | Variable Speed Pulley |
| Spindle Taper Size | R8 |
| Spindle Travel Length (mm) | 127.00 |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Spindle Travel Length (Inch) | 5 |
| Number Of T-slots | 3 |
| Overall Height (Decimal Inch) | 88.0000 |
| Overall Height (Mm - 5 Decimals) | 2235.00 |
| Overall Height (Inch) | 88 |
| Overall Length (Inch) | 70 |
| Overall Length (Decimal Inch) | 70.0000 |
| Overall Length (mm) | 1779.00 |
| Overall Depth (Inch) | 62 |
| Overall Depth (Inch) | 62.0000 |
| Overall Depth (Mm) | 1565.00 |
| Includes | 16 x 36 in 2 Axis DP500 Mill System with Bracket; Includes X-Axis 1-32 in/min Speed Mill Power Feed |
| Maximum Spindle To Column Distance (mm) | 600.00 |
| Maximum Spindle To Column Distance (Decimal Inch) | 24.0000 in |
| Maximum Spindle To Column Distance (Inch) | 24 |
 | |
| MSC Part # | 30393193 |
| Mfr Part # | 5012958/4104673 |
| Big Book Page # | 1525 |
