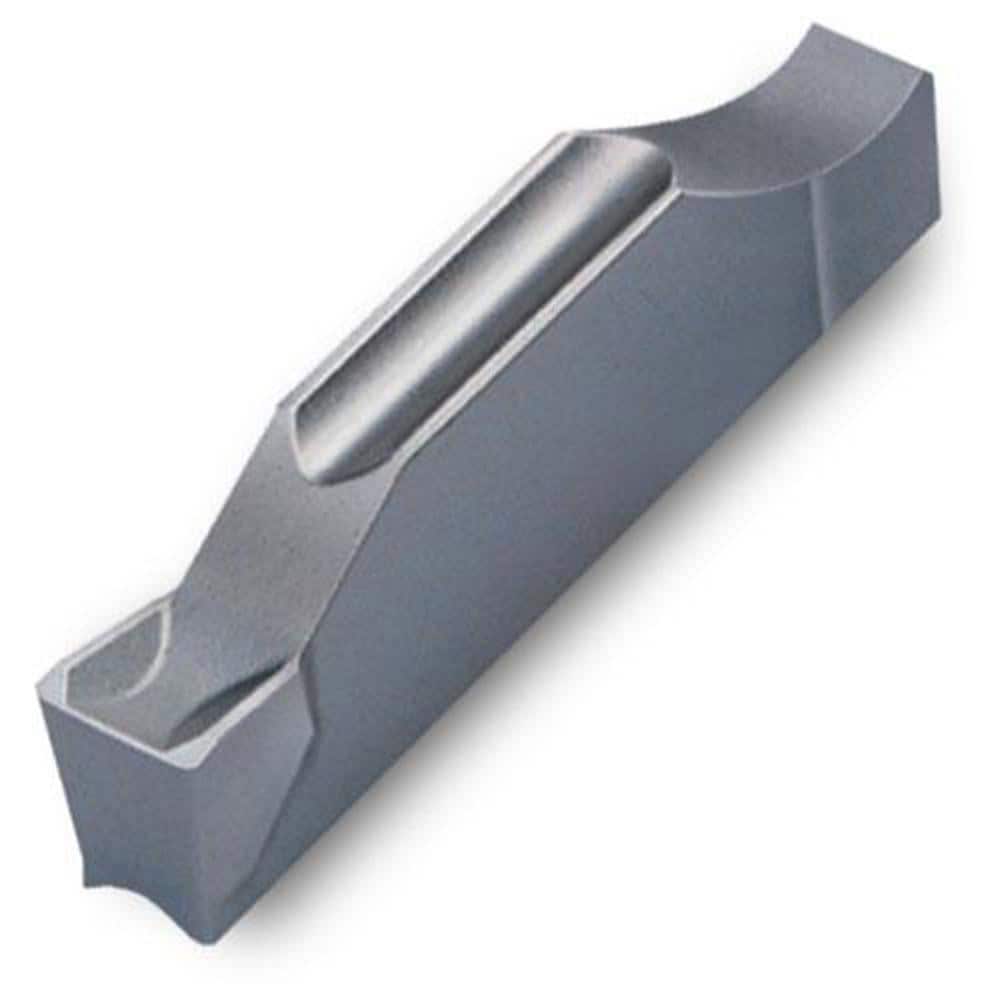

Grooving Insert: TSCC TT9080, Solid Carbide
Item #: 47177274
Brand: Ingersoll Cutting Tools
Model #: 6001121
Product Specifications
| Insert Style | TSC |
| Insert Size Code | 4 |
| Insert Material | Carbide |
| Manufacturer Grade | TT9080 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7 |
| Corner Radius (Decimal Inch) | 0.0120 |
| Chipbreaker | C |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Parting |
| Series | TSC |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.7900 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material | Hard Material; Cast Iron |
| Secondary Workpiece Material Code | H; K |
| Ansi Code | TSC4 |
| Iso Code | TSC4 |
| Cutting Height (Decimal Inch) | 0.1850 |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Insert Seat Size | 4 |
| Full Radius | No |
| Cutting Direction | Neutral |
| Insert Height (Decimal Inch) | 0.1850 |
| Coating Classification | PVD |
| Insert Width (Decimal Inch) | 0.1570 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1570 |
| Coating/Finish | Titanium Nitride; TiAlN |
| Single Or Double End | Single |
