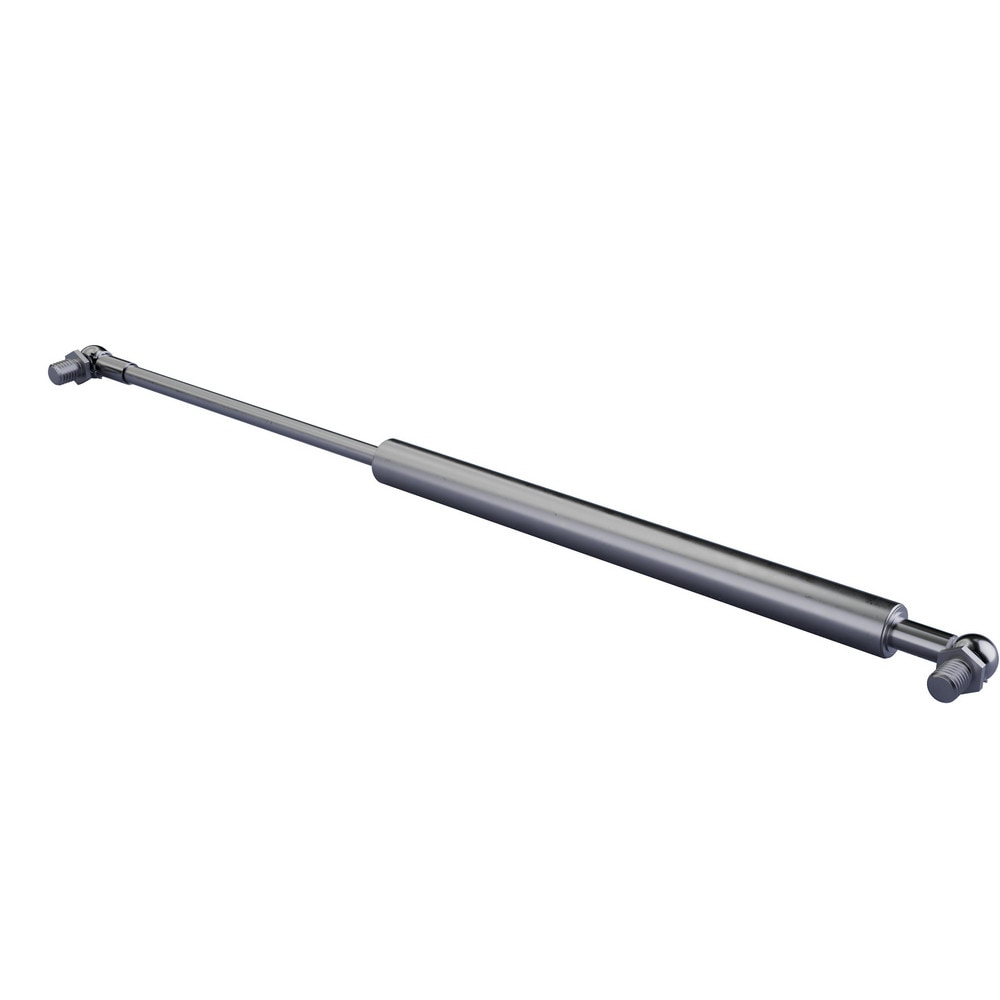

Extended Life Gas Spring: 0.3100" Rod Dia, 0.7100" Tube Dia, 120.00 lb Capacity
Item #: 02400018
Brand: Industrial Gas Springs
Model #: 89S002290XX0534
Product Specifications
| Fitting Type | Ball Joint |
| Type | Extended Life Gas Spring |
| Material | Stainless Steel |
| Rod Diameter (Decimal Inch) | 0.3100 |
| Tube Diameter (Decimal Inch) | 0.7100 |
| End Fitting Connection | Threaded End |
| Extended Length (Decimal Inch) | 20.9100 |
| Compressed Length (Decimal Inch) | 12.92 |
| Extension Force | 156 |
| Stroke Length (Decimal Inch) | 7.9900 |
| Thread Size (mm) | M8 x 1.25 |
| Force Mechanism | Gas |
| Working Direction | Extension |
| Capacity (Lb.) | 120.00 |
| Special Item Information | Stainless Steel Ball Joint |
| Finish Coating | Uncoated |
| Spring Rate | 4.5000 |
| UNSPSC Code | 31162800 |
