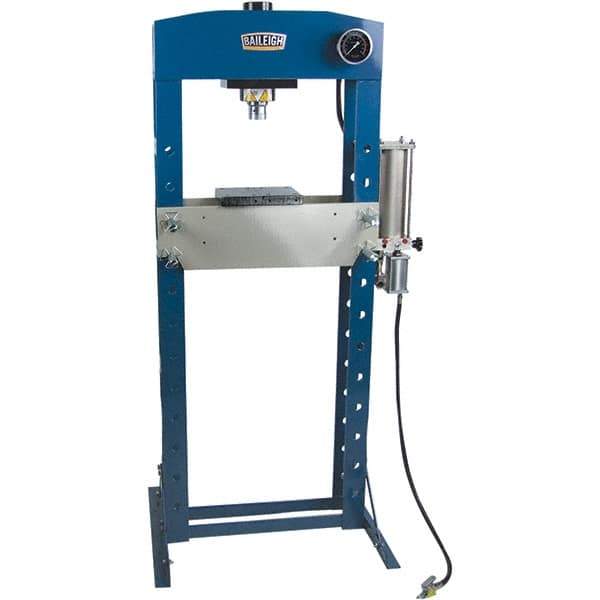

Baileigh - 30 Ton Pneumatic Shop Press
Item #: 30104533
Brand: Baileigh
Model #: 1004816
Exact Tooling IR#: 04
Product Specifications
30 Ton Pneumatic Shop Press -
| Power Type | Pneumatic |
| Pressure (Ton) | 30 |
| Stroke (Decimal Inch) | 5.9000 |
| Ram Size (Inch) | 3-1/2 |
| Ram Size (Decimal Inch) | 3.5000 |
| Screw Travel (Inch) | 5-15/16 |
| Distance Between Uprights (Inch) | 21-21/32 |
| Style | H-Frame Movable Table |
| Table Length (Inch) | 21.65 |
| Air Connector Size (Inch) | 1/4 |
| Base Width/Diameter (Decimal Inch) | 32.0000 |
| Base Depth (Inch) | 27-1/2 |
| Overall Length (Inch) | 32 |
