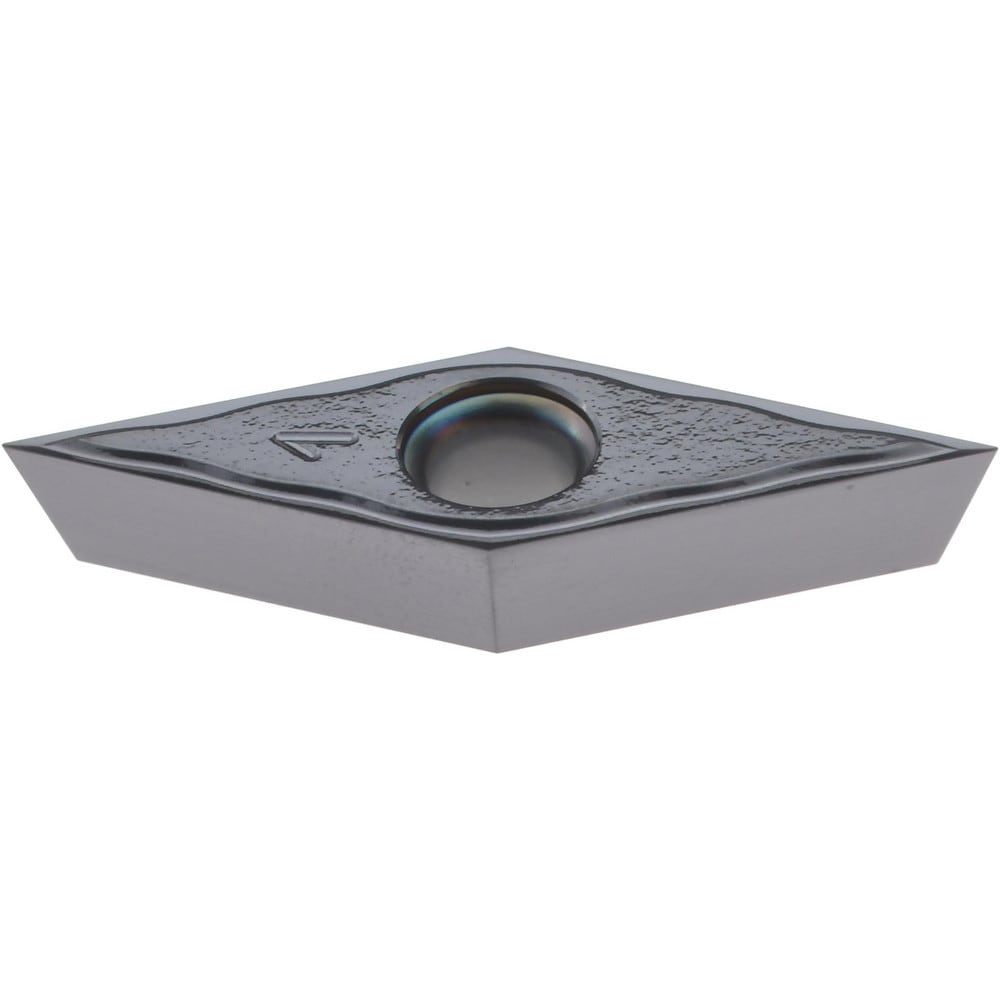

Turning Insert: VCGT160401ENEF ACM20K, Carbide
Item #: 75272468
Brand: Accupro
Model #: 75272468
Product Specifications
| ANSI Insert Code | VCGT33.5 |
| ISO Insert Code | VCGT160401 |
| Relief Angle | 7 |
| Insert Style | VCGT |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Included Angle | 35 |
| Manufacturer Grade | ACM20K |
| Coating/Finish | PVD |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | CI |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1752 |
| Maximum Depth of Cut (mm) | 1.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.0531 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Primary Workpiece Material Code | K; M |
| Iso Code | VCGT160401 |
| Standards | ANSI Code: VCGT33.500 |
| Chip Breaker | EN-EF |
| ANSI Size Code | 33.5 |
| ISO Size Code | 160401 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 16 |
| ANSI Insert Code | VCGT33.5 |
| ISO Insert Code | VCGT160401 |
| Relief Angle | 7 |
| Insert Style | VCGT |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Included Angle | 35 |
| Manufacturer Grade | ACM20K |
| Coating/Finish | PVD |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | CI |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1752 |
| Maximum Depth of Cut (mm) | 1.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.0531 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Primary Workpiece Material Code | K; M |
| Iso Code | VCGT160401 |
| Standards | ANSI Code: VCGT33.500 |
| Chip Breaker | EN-EF |
| ANSI Size Code | 33.5 |
| ISO Size Code | 160401 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 16 |
| MSC Part # | 75272468 |
| Mfr Part # | 75272468 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
