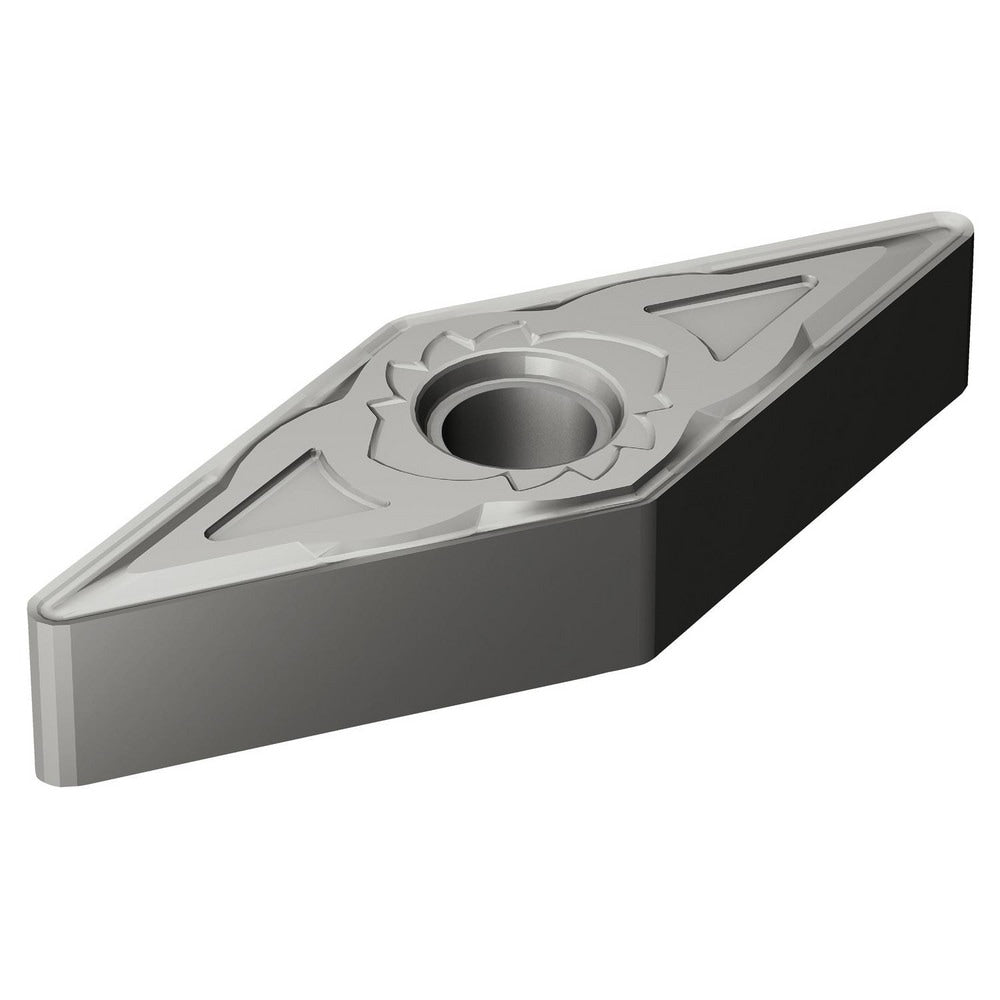

Turning Insert: VNMG331-SM 1205, Carbide
Item #: 72482201
Brand: Sandvik Coromant
Model #: 8432382
Product Specifications
| ANSI Insert Code | VNMG |
| ISO Insert Code | VNMG |
| Relief Angle | 0.000 |
| Insert Style | VNMG |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 0.00 |
| Manufacturer Grade | 1205 |
| Coating/Finish | AlTiN; PVD |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | VNMG |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | Diamond 35° |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.8100 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Super-alloys & Titanium |
| Secondary Workpiece Material Code | S |
| Iso Code | VNMG 16 04 04-SM 1205 |
| Manufacturers Catalog Number | VNMG 16 04 04-SM 1205 |
| Chip Breaker | SM |
| UNSPSC Code | 23242105 |
| Insert Size Code | 1604 |
| ANSI Insert Code | VNMG |
| ISO Insert Code | VNMG |
| Relief Angle | 0.000 |
| Insert Style | VNMG |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 0.00 |
| Manufacturer Grade | 1205 |
| Coating/Finish | AlTiN; PVD |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | VNMG |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | Diamond 35° |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.8100 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Super-alloys & Titanium |
| Secondary Workpiece Material Code | S |
| Iso Code | VNMG 16 04 04-SM 1205 |
| Manufacturers Catalog Number | VNMG 16 04 04-SM 1205 |
| Chip Breaker | SM |
| UNSPSC Code | 23242105 |
| Insert Size Code | 1604 |
| MSC Part # | 72482201 |
| Mfr Part # | 8432382 |
