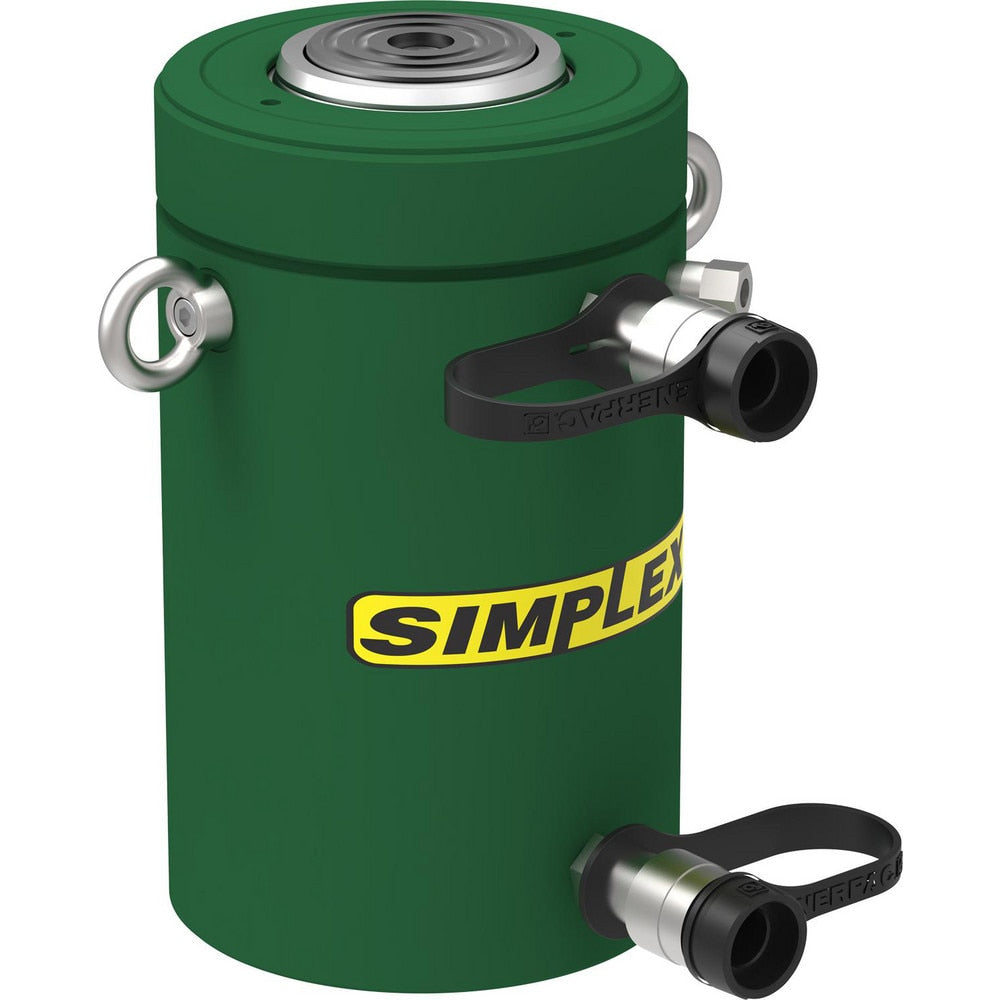

Portable Hydraulic Cylinders; Actuation: Double Acting; Load Capacity: 104; Stroke Length: 5.91; Oil Capacity: 121.50; Cylinder Bore Diameter (Decimal Inch): 5.12; Cylinder Effective Area: 1; Lowered Height: 11.65
Item #: 72622335
Brand: Enerpac
Model #: RCR1006
Product Specifications
| Actuation | Double Acting |
| Load Capacity | 104 |
| Stroke Length | 5.91 |
| Oil Capacity | 121.50 |
| Cylinder Bore Diameter (Decimal Inch) | 5.12 |
| Cylinder Effective Area | 1 |
| Lowered Height | 11.65 |
| Retracted Length | 12 |
| Extended Length | 17.56 |
| Cushion Type | No Cushion |
| Bore Diameter | 5.1200 |
| Outside Diameter | 6.69 in |
| Maximum Working Pressure | 10150.000 |
| Body Material | Steel |
| Saddle Diameter | 2.8 |
| Series | RCR |
| Maximum Height (Inch) | 17.5600 |
| UNSPSC Code | 27121602 |
| Actuation | Double Acting |
| Load Capacity | 104 |
| Stroke Length | 5.91 |
| Oil Capacity | 121.50 |
| Cylinder Bore Diameter (Decimal Inch) | 5.12 |
| Cylinder Effective Area | 1 |
| Lowered Height | 11.65 |
| Retracted Length | 12 |
| Extended Length | 17.56 |
| Cushion Type | No Cushion |
| Bore Diameter | 5.1200 |
| Outside Diameter | 6.69 in |
| Maximum Working Pressure | 10150.000 |
| Body Material | Steel |
| Saddle Diameter | 2.8 |
| Series | RCR |
| Maximum Height (Inch) | 17.5600 |
| UNSPSC Code | 27121602 |
| MSC Part # | 72622335 |
| Mfr Part # | RCR1006 |
| Country of Origin Country of Origin is subject to change | Spain |
