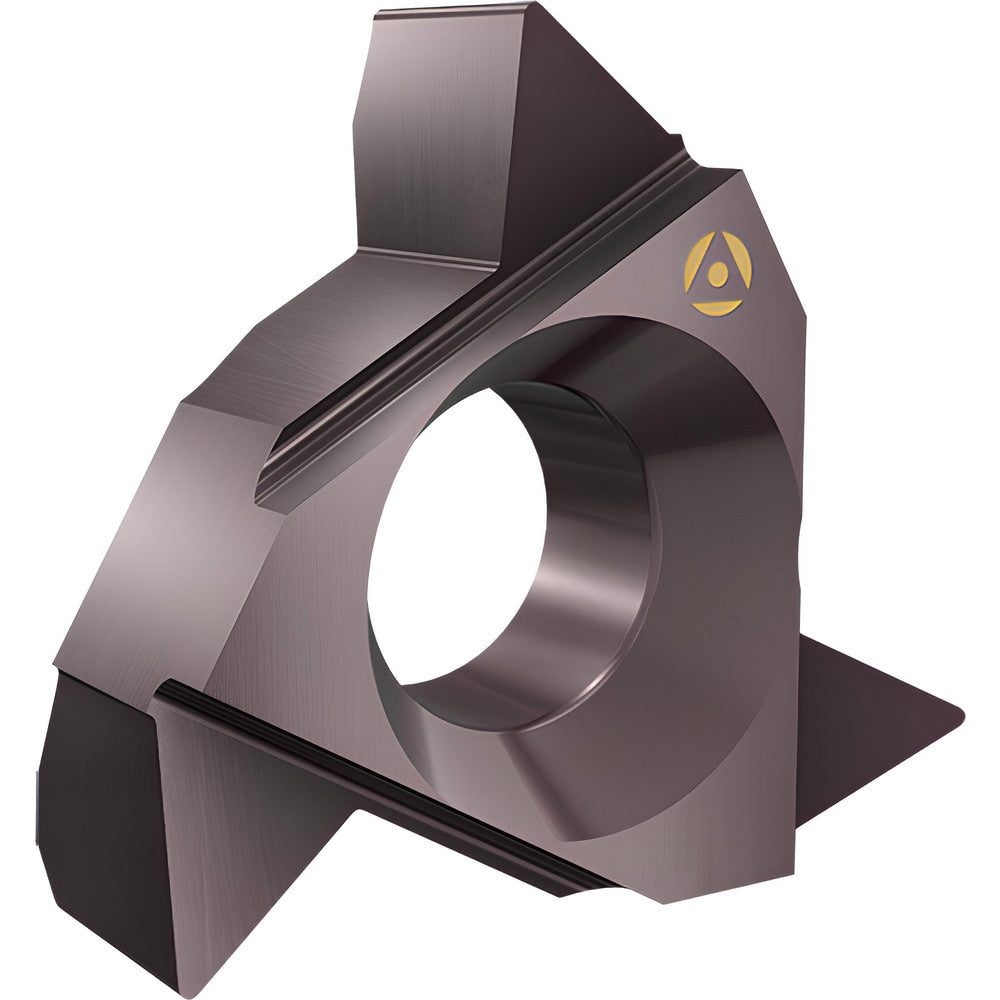

Laydown Threading Insert: MTLD1660D AC22, Carbide
Item #: 88123070
Brand: Tool-Flo
Model #: 2462392
Product Specifications
| Insert Style | LD |
| Insert Size Code | 16 |
| Insert Material | Carbide |
| Manufacturer Grade | AC22 |
| Threads Per Inch | 7-10 |
| Thread Type | Internal |
| Thread Standard | 60 Deg V |
| Insert Hand | Right Hand |
| Included Angle | 60 |
| Chipbreaker | No |
| Series | MT-LD |
| Coating Process | PVD |
| Inscribed Circle (mm) | 0.38 |
| Inscribed Circle (Inch) | 3/8 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N; O |
| Number of Teeth Per Side | 1 |
| Manufacturers Catalog Number | MTLD1660DAC22 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1450 |
| Coating/Finish | AlTiN |
| UNSPSC Code | 23291804 |
| Country of Origin | Israel |
