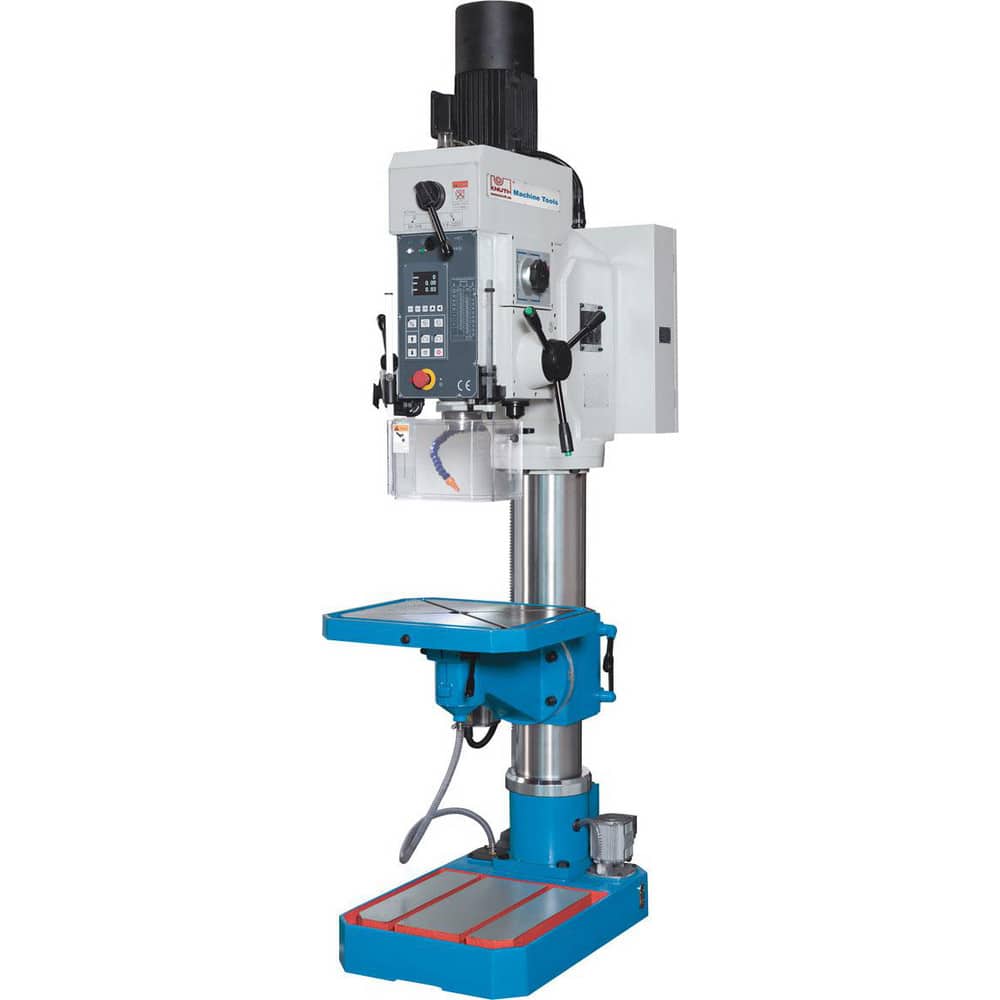

Floor & Bench Drill Presses; Drive Type: Geared Head; Stand Type: Floor; Swing Distance: 28 in; Machine Type: Drill Press; Spindle Speed Control: Frequency; Phase: 3; Spindle Taper Size: 4MT; Spindle Taper Size: Morse Taper 4; Horse Power: 3; Minimum Spin
Item #: 29771342
Brand: Knuth
Model #: 101669
Product Specifications
| Drive Type | Geared Head |
| Stand Type | Floor |
| Swing Distance | 28 in |
| Machine Type | Drill Press |
| Spindle Speed Control | Frequency |
| Phase | 3 |
| Spindle Taper Size | 4MT |
| Spindle Taper Size | Morse Taper 4 |
| Horse Power | 3 |
| Minimum Spindle Speed | 50 |
| Maximum Spindle Speed | 2200 |
| Minimum Spindle Speed (RPM) | 50.00 |
| Maximum Chuck Capacity | 0.51 in |
| Maximum Spindle Speed (RPM) | 2200.00 |
| Number of Spindle Speeds | variable |
| Spindle To Column Distance | 14 |
| Spindle to Column Distance (Decimal Inch) | 14.0000 |
| Spindle to Column Distance (mm) | 355.60 |
| Spindle to Column Distance (Inch) | 14 |
| Spindle to Table Distance (Inch) | 23 |
| Spindle to Table Distance (mm) | 584.20 |
| Spindle Travel Length | 8 |
| Spindle to Table Distance (Decimal Inch) | 23.0000 |
| Spindle Travel Length (Decimal Inch) | 8.0000 |
| Spindle To Table Distance | 23 |
| Spindle Travel Length (Inch) | 8 |
| Column Diameter | 7 |
| Spindle Travel Length (mm) | 203.20 |
| Column Diameter (mm) | 177.80 |
| Column Diameter (Inch) | 7 |
| Column Diameter (Decimal Inch) | 7.0000 |
| Drilling Capacity in Steel (Inch) | 2 |
| Drilling Capacity in Steel (mm) | 50.80 |
| Drilling Capacity in Cast Iron (Inch) | 2.25 |
| Drilling Capacity in Cast Iron (mm) | 57.15 |
| Drilling Capacity In Steel | 1.97 |
| Drilling Capacity In Cast Iron | 2.25 |
| Table Tilt Angle | 45 |
| Radial Head | No |
| Table Slot Size | 14 |
| Table Length | 18.000 |
| Table Width | 23.0000 |
| Voltage | 230 (Pre-Wired 230) |
| Voltage | 230 |
| Horsepower | 3 |
| Base Length (Inch) | 46 |
| Base Width | 27 |
| Base Length | 46.0000 |
| Base Width (Inch) | 27 |
| Motor Enclosure Type | Open Drip-Proof (ODP) |
| Overall Height | 93 |
| Overall Length | 46.00 |
| Overall Depth | 27 |
 | |
| MSC Part # | 29771342 |
| Mfr Part # | 101669 |
| Country of OriginCountry of Origin is subject to change | China |
