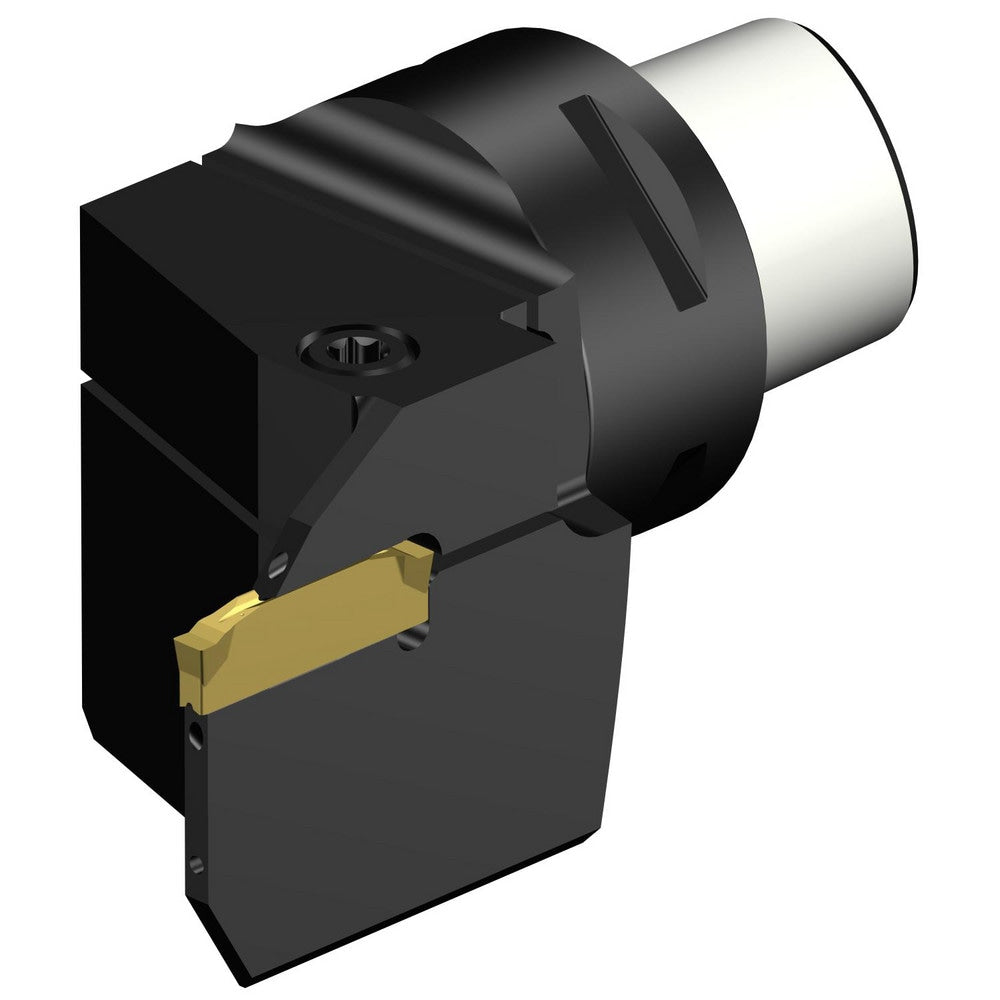

Modular Grooving Cutting Unit Heads; System Size: C3; Maximum Depth of Cut (Decimal Inch): 0.5906; Maximum Depth of Cut (mm): 15.00; Minimum Groove Width (Decimal Inch): 0.0941; Minimum Groove Width (mm): 2.39; Maximum Groove Width (Decimal Inch): 0.1252;
Item #: 77284784
Brand: Sandvik Coromant
Model #: 8290042
Product Specifications
| System Size | C3 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Maximum Depth of Cut (mm) | 15.00 |
| Minimum Groove Width (Decimal Inch) | 0.0941 |
| Minimum Groove Width (mm) | 2.39 |
| Maximum Groove Width (Decimal Inch) | 0.1252 |
| Maximum Groove Width (mm) | 3.18 |
| Cutting Direction | Right Hand |
| Modular Head Style | Cutting Head |
| Compatible Insert Style | CoroCut 2 -size F (C2I-F2-0250-) |
| Compatible Insert Size Code | F |
| Series | C2R |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Blade Style Compatibility | None |
| Complete Insert Compatibility | CoroCut 2 -size F (C2I-F2-0250-) |
| Applications | Grooving; Parting |
| Head Length Projection (Decimal Inch) | 2.1654 |
| Coolant Through | Yes |
| Head Length Projection (mm) | 55.00 |
| UNSPSC Code | 27112809 |
| Country of Origin | Sweden |
