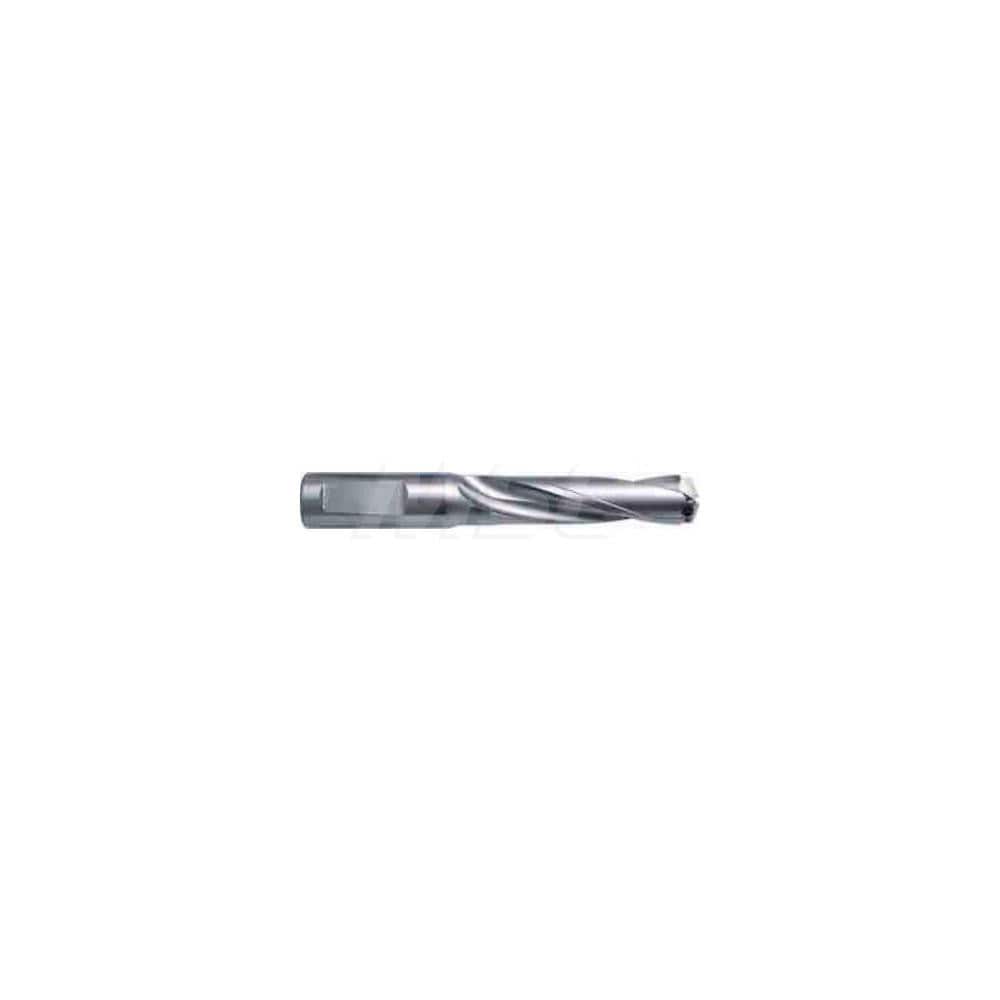

Replaceable-Tip Drill: 16 to 17 mm Dia, 54 mm Max Depth, 3/4" Whistle Notch Shank
Item #: 72305436
Brand: Guhring
Model #: 9052420170050
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
| Minimum Drill Diameter (mm) | 16.00 |
| Maximum Drill Diameter (mm) | 17.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.6693 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 54.00 |
| Maximum Drill Depth (Decimal Inch) | 2.1260 |
| Shank Type | Whistle Notch |
| Shank Diameter (Inch) | 3/4 |
| Insert Seat Size | 0.1 |
| Shank Diameter (mm) | 19.05 |
| Maximum Drill Depth Range (Decimal Inch) | 1.5000 to 2.5000 |
| Maximum Drill Depth Range (mm) | 40.00 to 60.00 |
| Compatible Insert Style | RT 800 WP |
| Overall Length (mm) | 130 |
| Series | 5242 |
| Toolholder Style | 3xD RT 800 WP |
| Flute Length (mm) | 76.00 |
| Body Length | 80.00 |
| Shank Length (mm) | 50.00 |
| Tool Application | Drilling |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
| Minimum Drill Diameter (mm) | 16.00 |
| Maximum Drill Diameter (mm) | 17.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.6693 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 54.00 |
| Maximum Drill Depth (Decimal Inch) | 2.1260 |
| Shank Type | Whistle Notch |
| Shank Diameter (Inch) | 3/4 |
| Insert Seat Size | 0.1 |
| Shank Diameter (mm) | 19.05 |
| Maximum Drill Depth Range (Decimal Inch) | 1.5000 to 2.5000 |
| Maximum Drill Depth Range (mm) | 40.00 to 60.00 |
| Compatible Insert Style | RT 800 WP |
| Overall Length (mm) | 130 |
| Series | 5242 |
| Toolholder Style | 3xD RT 800 WP |
| Flute Length (mm) | 76.00 |
| Body Length | 80.00 |
| Shank Length (mm) | 50.00 |
| Tool Application | Drilling |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| MSC Part # | 72305436 |
| Mfr Part # | 9052420170050 |
| Country of Origin Country of Origin is subject to change | Germany |
