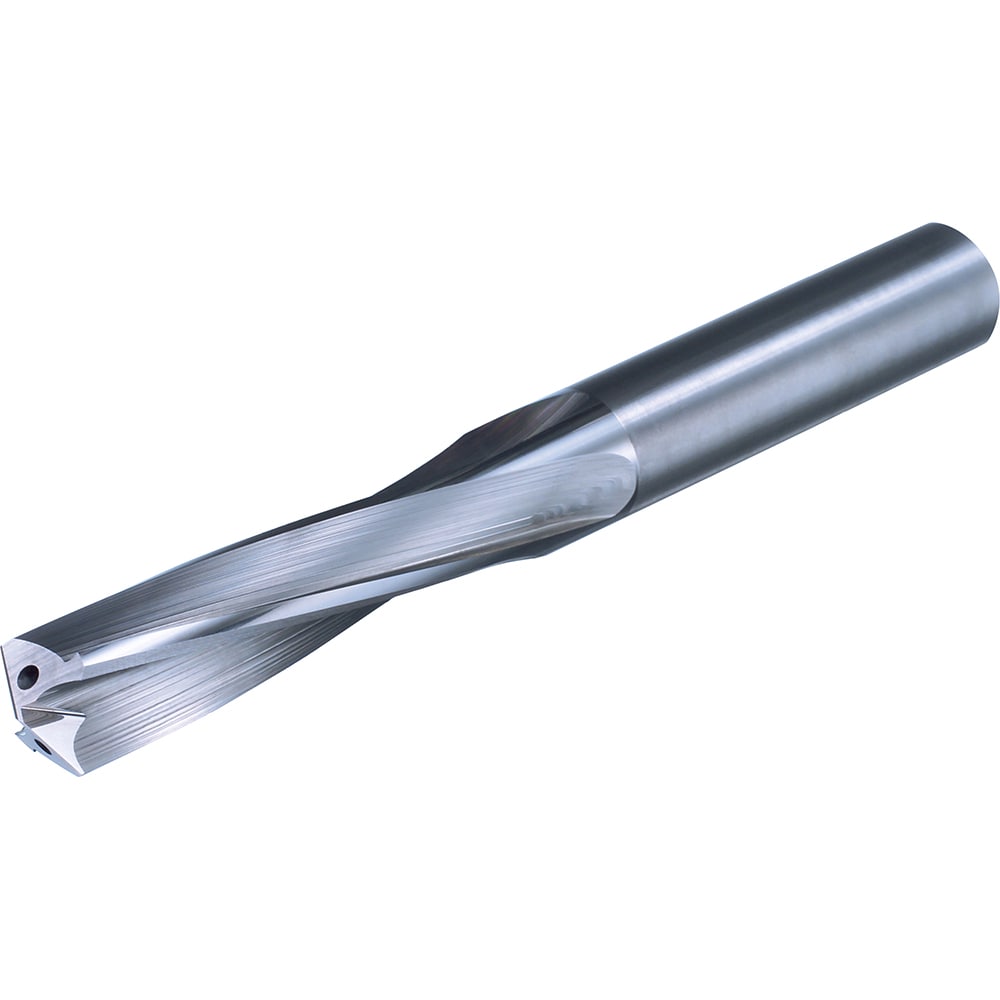

Extra Length Drill Bit: 0.3320", 140 °, Carbide
Item #: 72668460
Brand: Mitsubishi
Model #: 214922
Product Specifications
| Drill Bit Size (mm) | 8.43 |
| Overall Length (mm) | 95.5300 |
| Tool Material | Carbide |
| Coating/Finish | Bright/Uncoated |
| Coolant Through | Yes |
| Flute Type | Helical |
| Shank Type | Cylindrical |
| Drill Point Angle | 140 |
| Flute Length (mm) | 51.54 |
| Point Type | X-Thinning |
| Series | MAS |
| Cutting Direction | Right Hand |
| Tool Application | Drilling; Cross Hole; Stack Drilling |
| Spiral Type | Right Hand |
| Number Of Flutes | 2 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Aluminum |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Aluminum; Cast Iron; Aluminum Alloy |
| Secondary Workpiece Material Code | K; N |
| Drill Bit Grade | High Precision; High Performance |
| Drill Bit Size (Decimal Inch) | 0.3320 |
| Drill Point Length (mm) | 1.52 |
| Drill Point Length (Decimal Inch) | 0.0600 |
| Overall Length (Decimal Inch) | 3.7610 |
| Shank Diameter (Decimal Inch) | 0.3543 |
| Shank Diameter (mm) | 9.0000 |
| Shank Length (Decimal Inch) | 1.7320 |
| Shank Length (mm) | 43.990 |
| Flute Length (Decimal Inch) | 2.0290 |
| Flute By Diameter Ratio | 3xD |
| Maximum Drilling Depth (Decimal Inch) | 1.0560 |
| Maximum Drilling Depth (mm) | 26.82 |
| Specification Designation | ISO |
| UNSPSC Code | 23241637 |
| Drill Bit Size (mm) | 8.43 |
| Overall Length (mm) | 95.5300 |
| Tool Material | Carbide |
| Coating/Finish | Bright/Uncoated |
| Coolant Through | Yes |
| Flute Type | Helical |
| Shank Type | Cylindrical |
| Drill Point Angle | 140 |
| Flute Length (mm) | 51.54 |
| Point Type | X-Thinning |
| Series | MAS |
| Cutting Direction | Right Hand |
| Tool Application | Drilling; Cross Hole; Stack Drilling |
| Spiral Type | Right Hand |
| Number Of Flutes | 2 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Aluminum |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Aluminum; Cast Iron; Aluminum Alloy |
| Secondary Workpiece Material Code | K; N |
| Drill Bit Grade | High Precision; High Performance |
| Drill Bit Size (Decimal Inch) | 0.3320 |
| Drill Point Length (mm) | 1.52 |
| Drill Point Length (Decimal Inch) | 0.0600 |
| Overall Length (Decimal Inch) | 3.7610 |
| Shank Diameter (Decimal Inch) | 0.3543 |
| Shank Diameter (mm) | 9.0000 |
| Shank Length (Decimal Inch) | 1.7320 |
| Shank Length (mm) | 43.990 |
| Flute Length (Decimal Inch) | 2.0290 |
| Flute By Diameter Ratio | 3xD |
| Maximum Drilling Depth (Decimal Inch) | 1.0560 |
| Maximum Drilling Depth (mm) | 26.82 |
| Specification Designation | ISO |
| UNSPSC Code | 23241637 |
| MSC Part # | 72668460 |
| Mfr Part # | 214922 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
