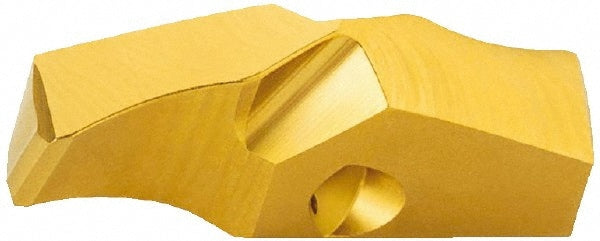

Replaceable Drill Tips: 1047 3/4 140D TIN, 0.7500" Dia, 19.05 mm Dia, 140 deg Point, K20/K40
Item #: 72306608
Brand: Guhring
Model #: 9010470190500
Product Specifications
| Cutting Diameter (Inch) | 3/4 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (mm) | 19.05 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | K20/K40 |
| Material Grade | K20/K40 |
| Series | 1047 |
| Coating Process | PVD |
| Insert Geometry | Relieved Cone |
| Insert Seat Size | 1.2 |
| Functional Length (Decimal Inch) | 0.1773 |
| Functional Length (mm) | 8.00 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel |
| Secondary Workpiece Material Code | M; N |
| Height (mm) | 8.00 |
| Overall Length/Projection (Decimal Inch) | 0.3152 |
| Web Thinning | Web-Thinned |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Screw; Clamp |
| Coolant Through | No |
| Flute Length (mm) | 5.00 |
| Point Type | Two Facet |
| Spiral Type | Regular Spiral |
| Style | 1047 |
| UNSPSC Code | 23242105 |
| Applications | Steel |
| Coating/Finish | TiN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
| Cutting Diameter (Inch) | 3/4 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (mm) | 19.05 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | K20/K40 |
| Material Grade | K20/K40 |
| Series | 1047 |
| Coating Process | PVD |
| Insert Geometry | Relieved Cone |
| Insert Seat Size | 1.2 |
| Functional Length (Decimal Inch) | 0.1773 |
| Functional Length (mm) | 8.00 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel |
| Secondary Workpiece Material Code | M; N |
| Height (mm) | 8.00 |
| Overall Length/Projection (Decimal Inch) | 0.3152 |
| Web Thinning | Web-Thinned |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Screw; Clamp |
| Coolant Through | No |
| Flute Length (mm) | 5.00 |
| Point Type | Two Facet |
| Spiral Type | Regular Spiral |
| Style | 1047 |
| UNSPSC Code | 23242105 |
| Applications | Steel |
| Coating/Finish | TiN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
| MSC Part # | 72306608 |
| Mfr Part # | 9010470190500 |
| Country of Origin Country of Origin is subject to change | Germany |
