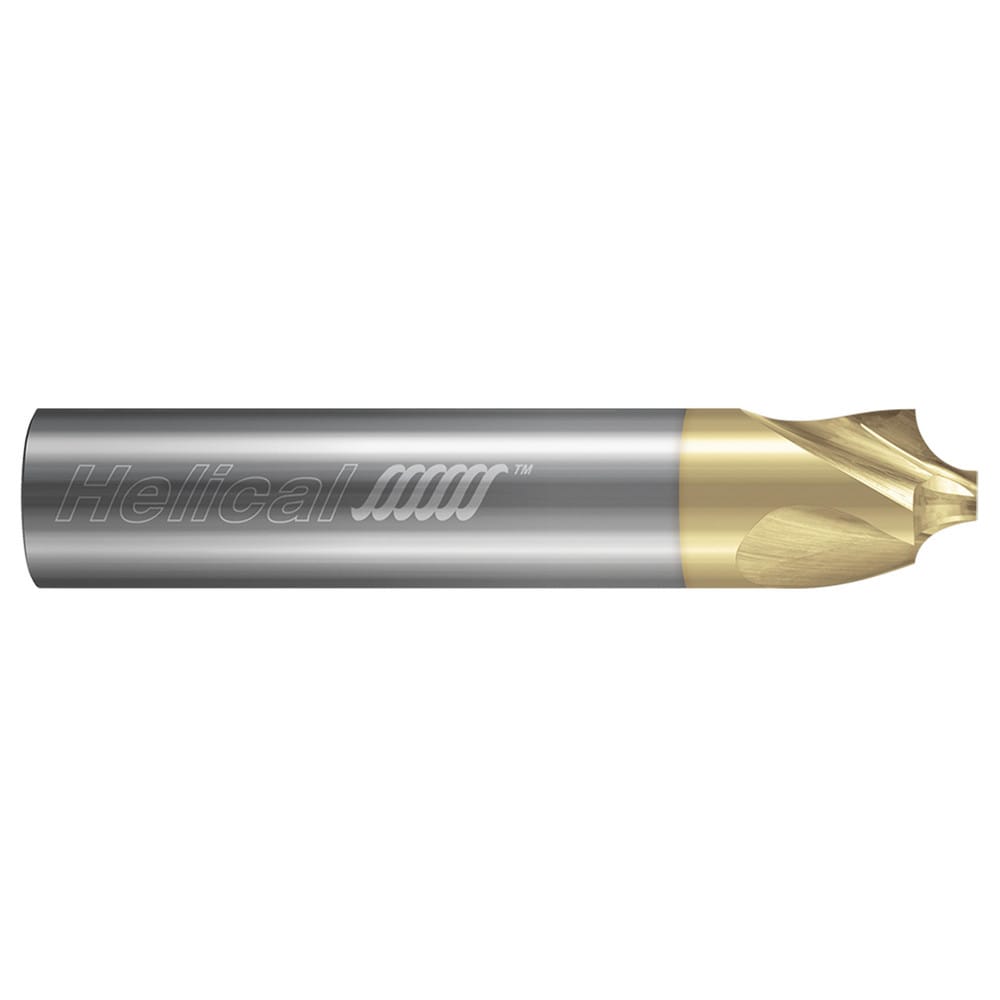

Corner Rounding End Mill: 1/8" Radius, 7/16" Dia, 5 Flutes, Solid Carbide
Item #: 81511347
Brand: Helical Solutions
Model #: 88489
Product Specifications
| Mill Diameter (Inch) | 7/16 |
| Mill Diameter (Decimal Inch) | 0.4375 |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 5 |
| Radius (Decimal Inch) | 0.1250 |
| Radius (Inch) | 1/8 |
| Shank Type | Cylindrical |
| Flute Type | Straight |
| Shank Diameter (Inch) | 7/16 |
| Shank Diameter (Decimal Inch) | 0.4375 |
| Tip Diameter (Decimal Inch) | 0.1770 |
| Tip Diameter (mm) | 4.500 |
| Overall Length (Inch) | 2-3/4 |
| Overall Length (Decimal Inch) | 2.75 |
| Flute Direction | Right Hand |
| Series | Specialty Profiles - Corner Rounding End Mills - Helical Flute - 3 & 5 Flute |
| Coolant Through | No |
| Single Or Double End | Single |
| Coating/Finish | Zplus |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
