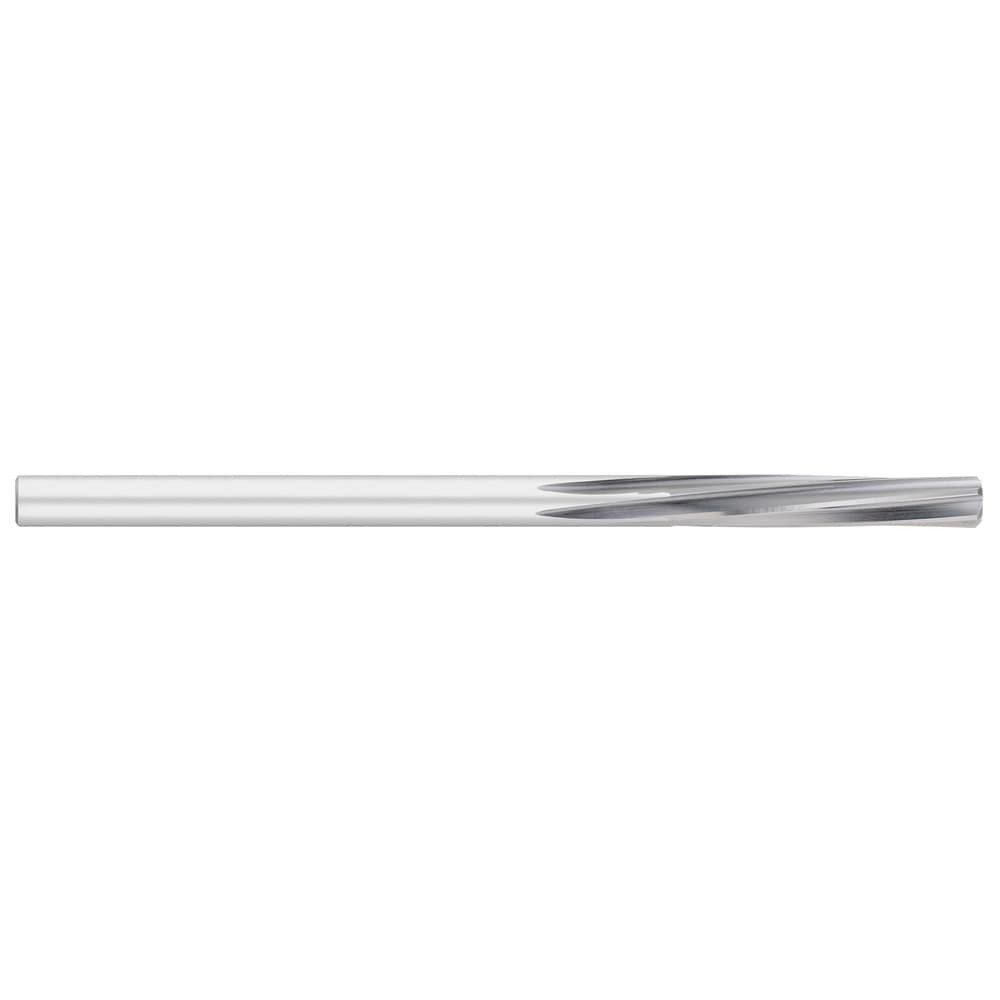

Chucking Reamer: 0.4365" Dia, 7" OAL, 1-3/4" Flute Length, Straight-Cylindrical Shank, HSS
Item #: 07948870
Brand: Titan USA
Model #: TR97150
Product Specifications
| Reamer Diameter Range (Decimal Inch) | 0.4000 - 0.4999 |
| Reamer Diameter (Decimal Inch) | 0.4365 |
| Tool Material | HSS |
| Flute Type | Spiral |
| Spiral Direction | Left Hand |
| Coating/Finish | Bright/Uncoated |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Dowel Pin Reamer | No |
| Over/Under Size Reamer | Yes |
| Overall Length (Decimal Inch) | 7.0000 |
| Overall Length (Inch) | 7 |
| Number of Flutes | 6 |
| Shank Diameter (Decimal Inch) | 0.3730 |
| Flute Length (Inch) | 1-3/4 |
| Reamer Diameter Tolerance | +0.0002 to -0.0000 in |
| Over/Under Size Direction | Over |
| Under Size Over Size Dowel Pin Size | 0.4365 O/U |
| Series | TR97 |
| Cutting Direction | Right Hand |
| Additional Information | Left Hand Spiral; Reaming; High Speed Steel; Reamers; Chucking |
| UNSPSC Code | 23241611 |
