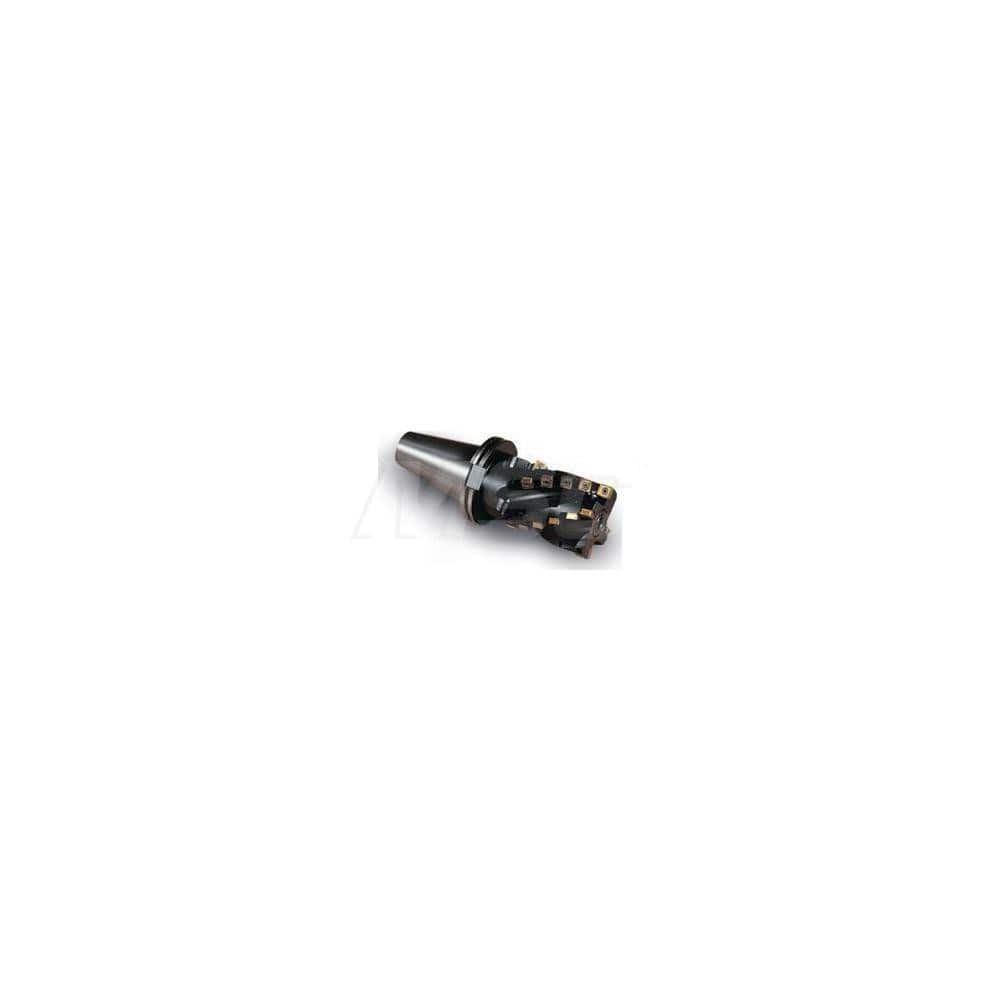

Indexable Square-Shoulder End Mill: R215.59CV5008009512.4S, Taper Shank Uses 22, No, 252.00 mm OAL
Item #: 29104890
Brand: Seco
Model #: 75007713
Product Specifications
| Minimum Cutting Diameter (mm) | 80.00 |
| Maximum Cutting Diameter (mm) | 80.00 |
| Maximum Depth of Cut (mm) | 96.00 |
| Cutter Style | R215.59 |
| Shank Type | Taper |
| Maximum Ramping Angle | 0 |
| Insert Holding Method | Screw |
| Shank Taper Size | CV50 |
| Overall Length (mm) | 252.00 |
| Tool Material | Steel |
| Series | R215.59 |
| Flute Type | Helical |
| Lead Angle | 90 |
| Head Length (mm) | 150.00 |
| Maximum RPM | 6500 |
| Tool Application | Shouldering |
| Tool Performance | General Purpose |
| Usable Length (mm) | 150.000 |
| Number Of Flutes | 4 |
| Number Of Cutter Inserts | 22 |
| Coolant Through | No |
