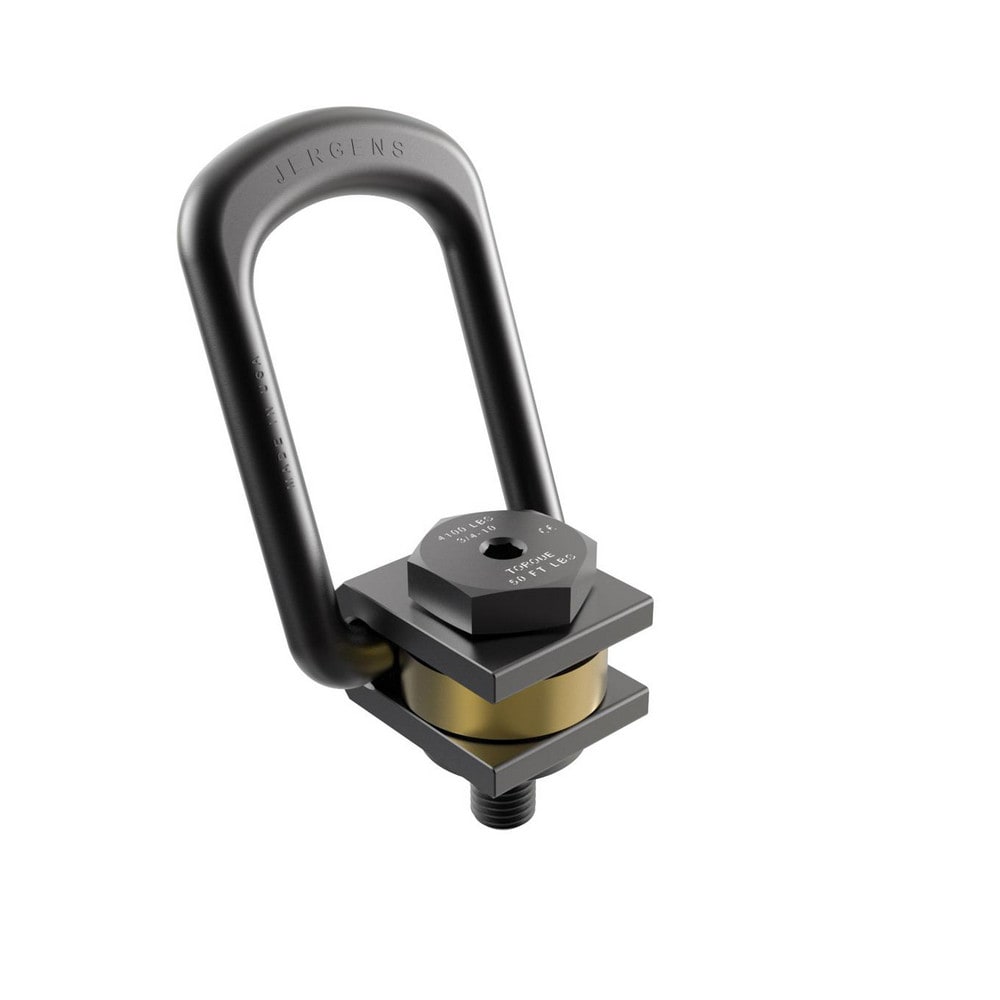

Side Pull Hoist Ring: Bolt-On, 325 lb Capacity, 360°
Item #: 86823226
Brand: Jergens
Model #: 47581
Product Specifications
| Hoist Ring Type | Side Pull |
| Load Capacity (Lbs) | 325 |
| Thread Size | M8x1.25 |
| Radius (mm) | 25 |
| Radius (Decimal Inch) | 1 |
| Ring Height (mm) | 76 |
| Ring Height (Decimal Inch) | 3 |
| Material | Alloy Steel |
| Ring Thickness (mm) | 8 |
| Ring External Width (Inch) | 2.375 |
| Ring External Width (mm) | 60 |
| Ring Inside Diameter (mm) | 44.00 |
| Ring Internal Width (mm) | 44 |
| Ring Internal Width (Inch) | 1.75 |
| Movement Type | 360° |
| Finish | Black Oxide |
| Material Grade | Alloy Steel |
| Mount Type | Bolt-On |
| Number Of Mounting Holes | 1 |
| Fabrication | Forged |
| Standards | ASTM E1444 |
| Ring Outside Diameter (Decimal Inch) | 2.375 |
| Ring Width (mm) | 60 |
| UNSPSC Code | 24101600 |
| Ring Width (Inch) | 2-3/8 |
| Ring Width (Decimal Inch) | 2.375 |
| Clevis Height (mm) | 33 |
| Head/Holder Diameter (Fractional Inch) | 1 |
| Clevis Width (Inch) | 1 |
| Mounting Surface Diameter (mm) | 21 |
| Clevis Width (mm) | 25 |
| Ring Opening (mm) | 52 |
| Country of Origin | UNITED STATES |
