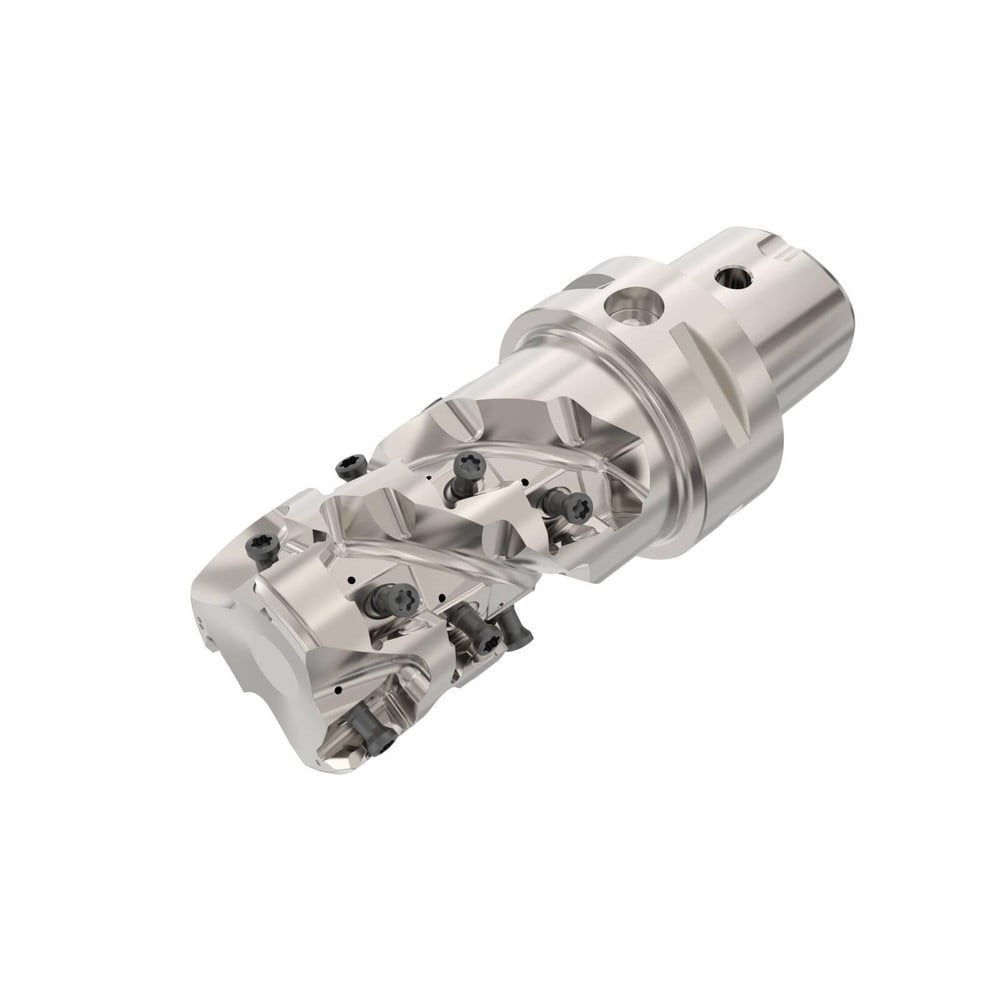

Indexable Square-Shoulder End Mill: C5R217.94044058LO12.3A, C5 Modular Connection, Modular Connection Shank
Item #: 86718558
Brand: Seco
Model #: 10215194
Product Specifications
| Cutting Diameter (mm) | 44.00 |
| Overall Length (mm) | 125.00 |
| Maximum Depth of Cut (mm) | 58.00 |
| Cutter Style | R217.94 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 50.0000 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 0 |
| Tool Material | Steel |
| Series | R217.94-12 |
| Flute Type | Helical |
| Lead Angle | 90 |
| Head Length (mm) | 95.00 |
| Modular Connection Size | C5 |
| Maximum RPM | 10600.000 |
| Tool Application | Helical; Slotting; Shouldering |
| Tool Performance | General Purpose |
| Standards | ISO; ANSI |
| Rake | Negative |
| Complete Insert Compatibility | LOEX1207 |
| Insert Compatibility | LOEX1207 |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| UNSPSC Code | 27112803 |
| ISO Number | C5-R217.94-044-058-LO12.3A |
| Manufacturers Catalog Number | 10215194 |
| Usable Length (mm) | 95.000 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 15 |
| Coolant Through | Yes |
| Country of Origin | France |
