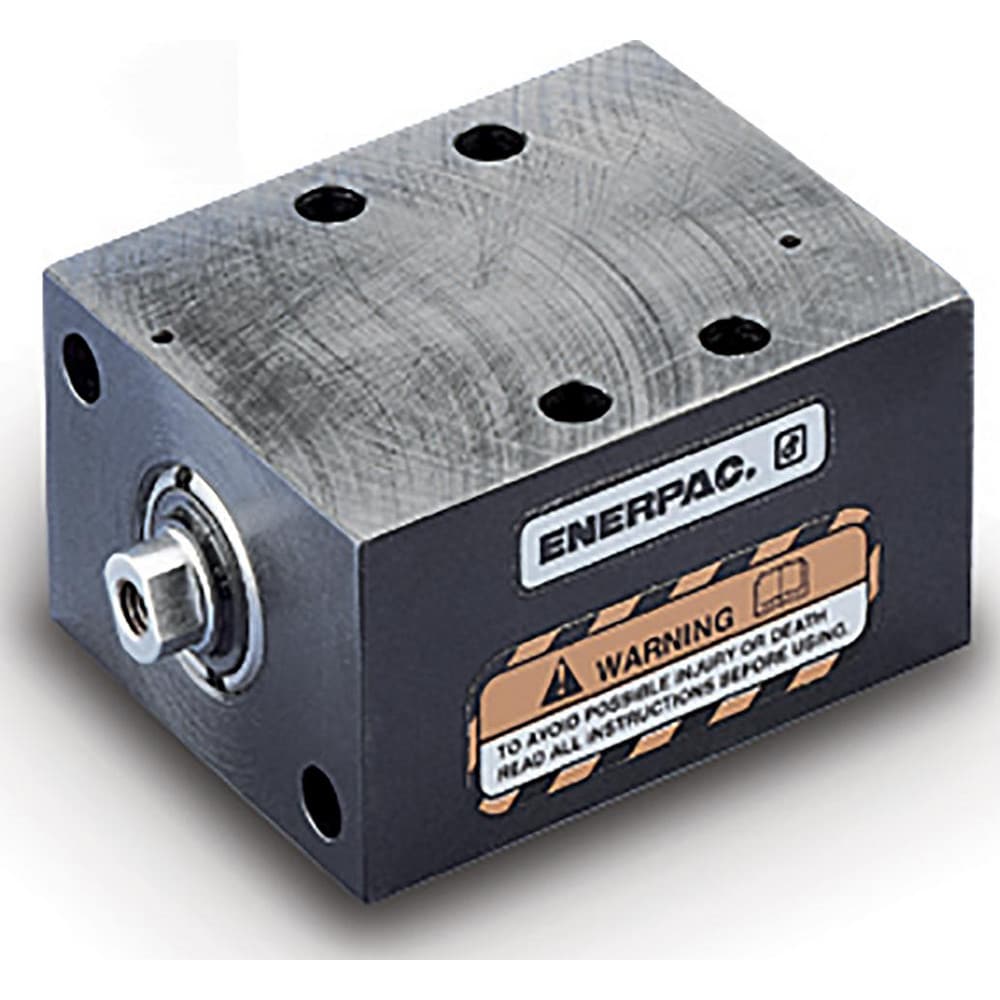

Compact Hydraulic Cylinders; Actuation: Double Acting; Rod Diameter (Decimal Inch): 0.9700; Body Material: Steel; Stroke Length (Decimal Inch): 0.9800; Maximum Working Pressure (Psi - 3 Decimals): 5000.000
Item #: 96495585
Brand: Enerpac
Model #: CDB40252
Product Specifications
| Actuation | Double Acting |
| Rod Diameter (Decimal Inch) | 0.9700 |
| Body Material | Steel |
| Stroke Length (Decimal Inch) | 0.9800 |
| Maximum Working Pressure (Psi - 3 Decimals) | 5000.000 |
| Port Size | 1/8 in |
| Mount Type | Vertical; Horizontal |
| Bore Size (Decimal Inch) | 1.57 |
| Retracted Length (Decimal Inch) | 3.15 |
| Extended Length (Inch) | 4.1300 |
| Load Capacity (Lb.) | 4900 |
| UNSPSC Code | 27121602 |
| Country of Origin | UNITED STATES |
