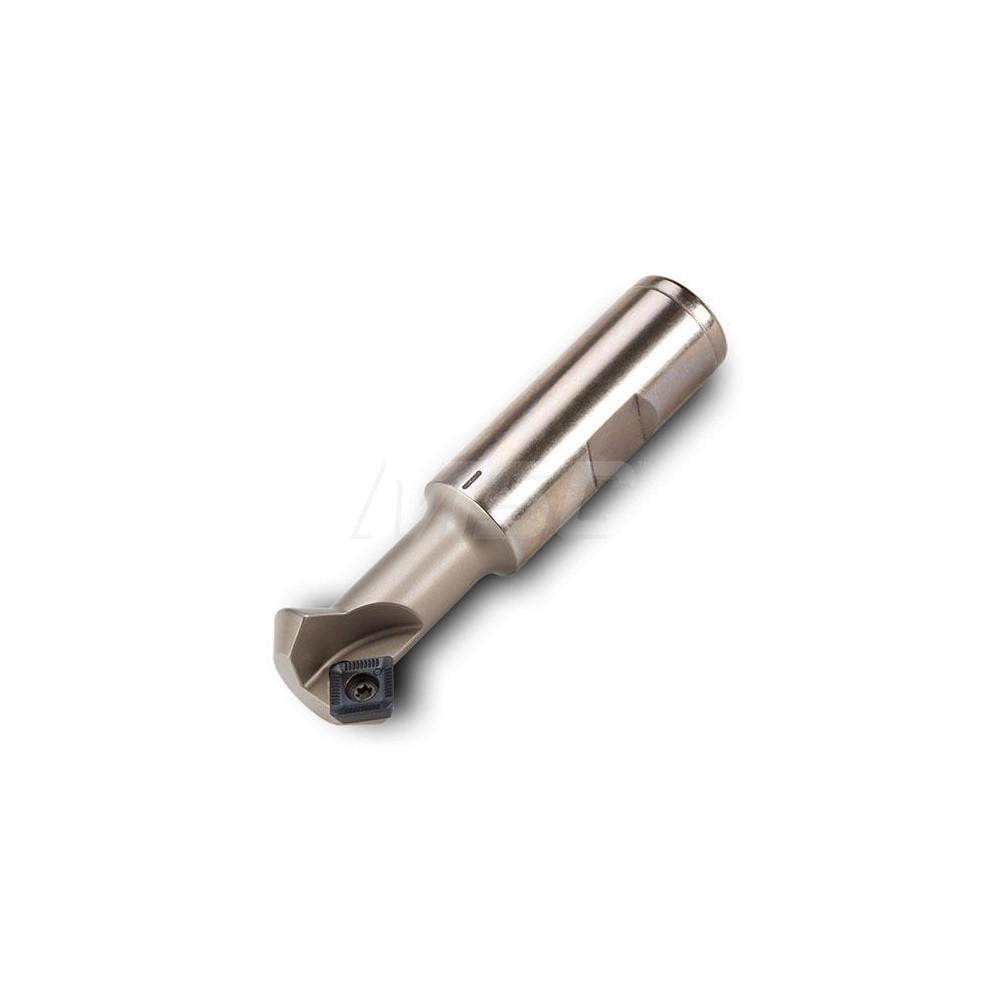

45° Lead Angle, 0.495" to 1" Cut Diam, 3/4" Shank Diam, Indexable & Chamfer End Mill
Item #: 74419342
Brand: Ingersoll Cutting Tools
Model #: 3010303
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.4950 |
| Maximum Cutting Diameter (Inch) | 1 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2300 |
| Compatible Insert Size Code | SHLT 090308N-HR |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number Of Cutter Inserts | 1 |
| Insert Style | SHLT 090308N-HR |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 3.5000 |
| Series | 15N1F |
| Toolholder Style | 15N1 |
| Functional Length (Decimal Inch) | 1.5000 |
| Maximum Body Diameter (Decimal Inch) | 0.7500 |
| Tool Application | Milling |
| Head Length (Decimal Inch) | 1.5000 |
| UNSPSC Code | 23291600 |
| Number Of Flutes | 1 |
| Coolant Through | No |
| Shank Type | Weldon Flat |
| Minimum Cutting Diameter (Decimal Inch) | 0.4950 |
| Maximum Cutting Diameter (Inch) | 1 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2300 |
| Compatible Insert Size Code | SHLT 090308N-HR |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number Of Cutter Inserts | 1 |
| Insert Style | SHLT 090308N-HR |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 3.5000 |
| Series | 15N1F |
| Toolholder Style | 15N1 |
| Functional Length (Decimal Inch) | 1.5000 |
| Maximum Body Diameter (Decimal Inch) | 0.7500 |
| Tool Application | Milling |
| Head Length (Decimal Inch) | 1.5000 |
| UNSPSC Code | 23291600 |
| Number Of Flutes | 1 |
| Coolant Through | No |
| Shank Type | Weldon Flat |
| MSC Part # | 74419342 |
| Mfr Part # | 3010303 |
