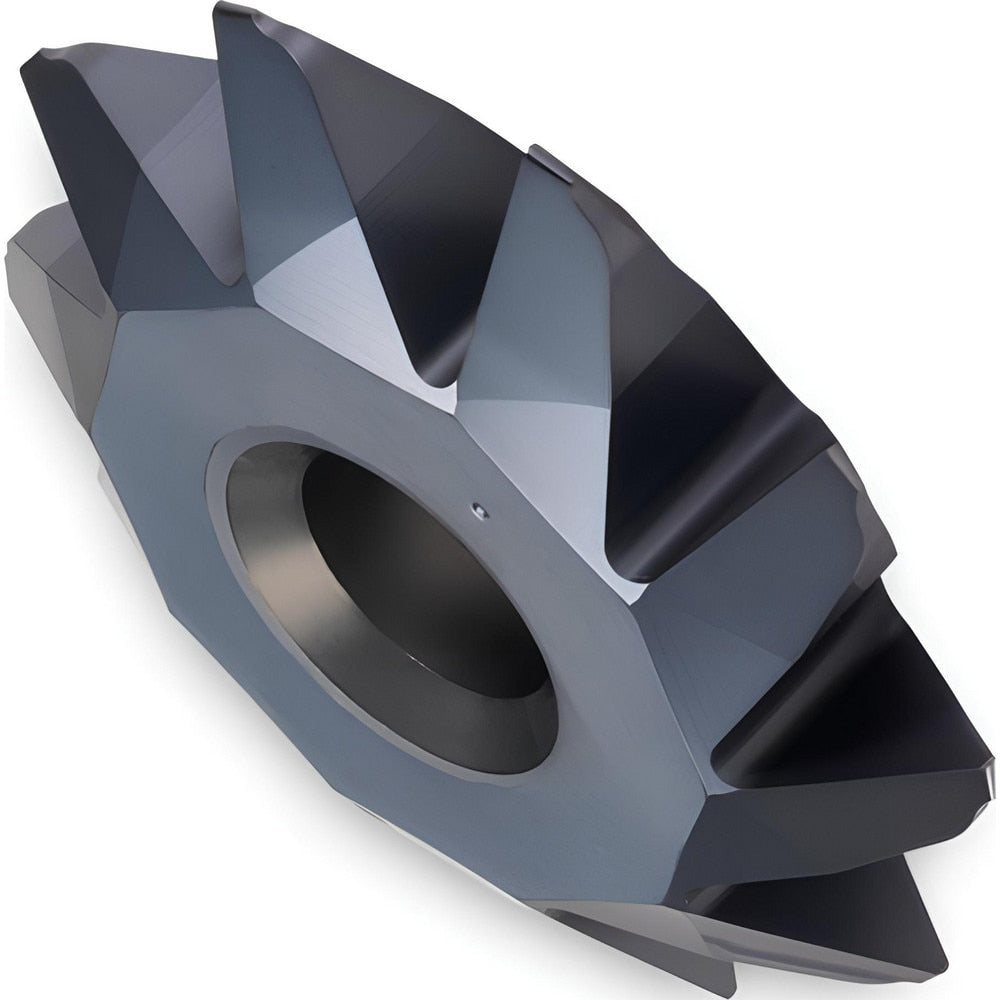

Brand: Ingersoll Cutting Tools / Part #: 6324389
Item #: 94560083
Brand: Ingersoll Cutting Tools
Model #: 6324389
Product Specifications
| Milling Tip Type | Thread Mill |
| Milling Tip Style | 18Y_60 |
| Maximum Depth of Cut (mm) | 3.50 |
| Cutting Diameter (mm) | 24.70 |
| Tool Material | Carbide |
| Depth of Cut (mm) | 3.50 |
| Manufacturer Grade | IN2005 |
| Insert Hand | Right Hand |
| Chipbreaker | None |
| Series | 18Y_60 |
| Coating Process | PVD |
| Corner Radius (mm) | 0.20 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Pitch (mm) | 3.00 to 5.00 |
| Manufacturers Catalog Number | 18Y24730LPRP60 |
| Length of Cut (mm) | 5.5000 |
| Coolant Through | No |
| Overall Length (mm) | 11.0000 |
| Included Angle Degree | 60 |
| Coating/Finish | TiAlN |
| Number Of Flutes | 6 |
