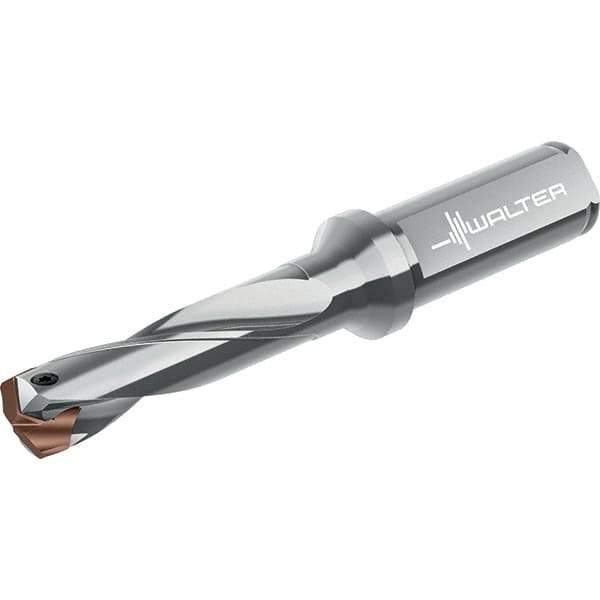

Walter - Replaceable-Tip Drills Series: D4140 Minimum Drill Diameter (mm): 17.00
Item #: 28564532
Brand: Walter
Model #: 7508852
Exact Tooling IR#: 04
Product Specifications
Replaceable-Tip Drills; Series: D4140 ; Minimum Drill Diameter (mm): 17.00 ; Maximum Drill Diameter (mm): 17.99 ; Drill Depth by Diameter Ratio: 3xD ; Maximum Drill Depth (mm): 54.00 ; Shank Diameter (Inch): 3/4
| Series | D4140 |
| Minimum Drill Diameter (mm) | 17.00 |
| Maximum Drill Diameter (mm) | 17.99 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 54.00 |
| Shank Diameter (Inch) | 3/4 |
| Insert Style | P6001; P6003; P6004; P6005 |
| Toolholder Style | D4140 |
| Through Coolant | Yes |
| Shank Type | Straight |
| Flute Length (mm) | 68.00 |
| Overall Length (mm) | 139.59 |
| Toolholder Material | Steel |
