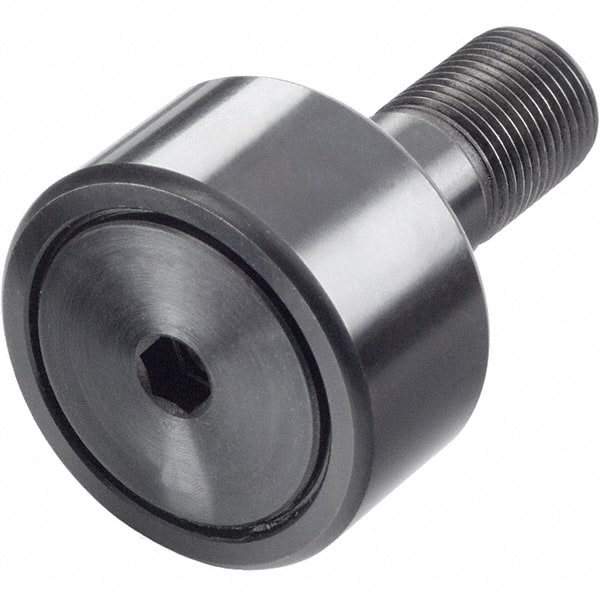

Tritan - Cam Followers & Idler Rollers; Type: Crowned Sealed Stud Cam Follower with Hex ; Roller Diameter (Decimal Inch): 1.6250 ; Roller Width (Decimal Inch): 0.8750 ; Stud Diameter (Decimal Inch): 0.6250 ; Dynamic Load Capacity (Lb.): 4,840 ; Static Lo
Item #: 28561819
Brand: Tritan
Model #: CCF 1 5/8SB
Product Specifications
Cam Followers & Idler Rollers; Type: Crowned Sealed Stud Cam Follower with Hex ; Roller Diameter (Decimal Inch): 1.6250 ; Roller Width (Decimal Inch): 0.8750 ; Stud Diameter (Decimal Inch): 0.6250 ; Dynamic Load Capacity (Lb.): 4,840 ; Static Load Capacity: 5,640.00 (Pounds)
| Type | Crowned Sealed Stud Cam Follower with Hex |
| Roller Diameter (Decimal Inch) | 1.6250 |
| Roller Width (Decimal Inch) | 0.8750 |
| Stud Diameter (Decimal Inch) | 0.6250 |
| Dynamic Load Capacity (Lb.) | 4,840 |
| Static Load Capacity | 5,640.00 |
| Length (Decimal Inch) | 2.375 |
| Thread Size | 5/8-18 |
| Material | Black Oxide |
| Stud Length (Inch) | 1-1/2 |
| Thread Length | 3/4 |
| Roller Type | Full Complement |
