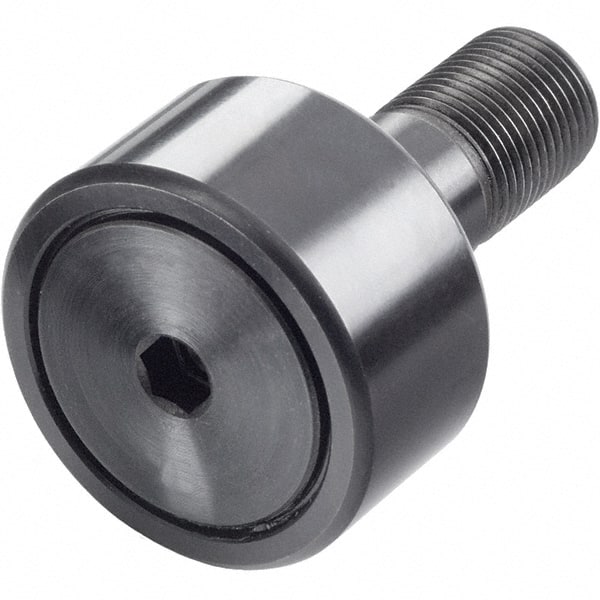

Tritan - Cam Followers & Idler Rollers; Type: Sealed Heavy Stud Cam Follower with Hex ; Roller Diameter (Decimal Inch): 3.5000 ; Roller Width (Decimal Inch): 2.0000 ; Stud Diameter (Decimal Inch): 1.7500 ; Dynamic Load Capacity (Lb.): 22,800 ; Static Loa
Item #: 28561439
Brand: Tritan
Model #: CFH 3 1/2SB
Product Specifications
Cam Followers & Idler Rollers; Type: Sealed Heavy Stud Cam Follower with Hex ; Roller Diameter (Decimal Inch): 3.5000 ; Roller Width (Decimal Inch): 2.0000 ; Stud Diameter (Decimal Inch): 1.7500 ; Dynamic Load Capacity (Lb.): 22,800 ; Static Load Capacity: 63,250.00 (Pounds)
| Type | Sealed Heavy Stud Cam Follower with Hex |
| Roller Diameter (Decimal Inch) | 3.5000 |
| Roller Width (Decimal Inch) | 2.0000 |
| Stud Diameter (Decimal Inch) | 1.7500 |
| Dynamic Load Capacity (Lb.) | 22,800 |
| Static Load Capacity | 63,250.00 |
| Length (Decimal Inch) | 4.750 |
| Thread Size | 1-3/4-12 |
| Material | Black Oxide |
| Stud Length (Inch) | 2-3/4 |
| Thread Length | 1-3/8 |
| Roller Type | Full Complement |
