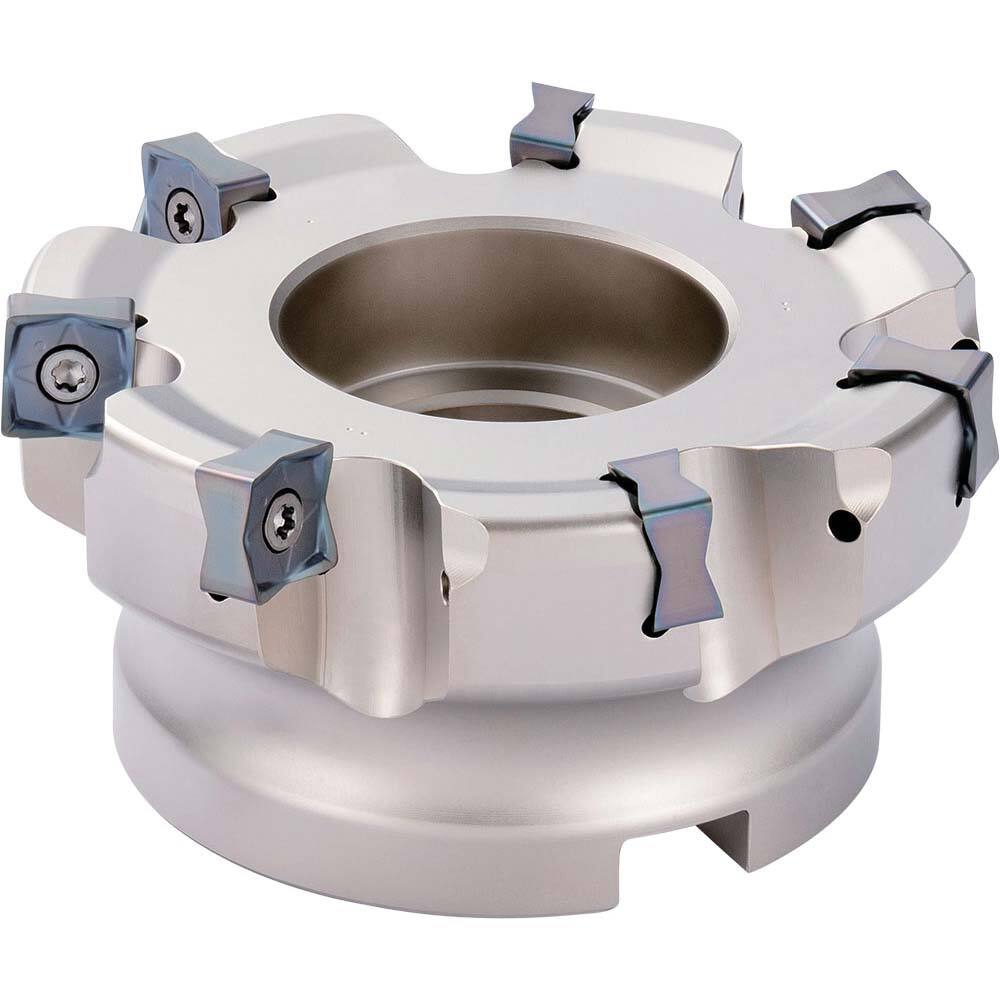

Kyocera - Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 50.00 ; Cutting Diameter (Decimal Inch): 1.9685 ; Arbor Hole Diameter (mm): 22.00 ; Lead Angle: 88 ; Overall Height (mm): 40.00000 ; Insert Compatibility: SNMU130508EN-GM; SNMU130508E
Item #: 28506186
Brand: Kyocera
Model #: 8858744
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 50.00 ; Cutting Diameter (Decimal Inch): 1.9685 ; Arbor Hole Diameter (mm): 22.00 ; Lead Angle: 88 ; Overall Height (mm): 40.00000 ; Insert Compatibility: SNMU130508EN-GM; SNMU130508EN-SM; SNMU130508EN-GH
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 22.00 |
| Lead Angle | 88 |
| Overall Height (mm) | 40.00000 |
| Insert Compatibility | SNMU130508EN-GM; SNMU130508EN-SM; SNMU130508EN-GH |
| Series | MFSN |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 5.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | MFSN |
| Number of Flutes | 4 |
| Keyway Width (mm) | 10.4000 |
| Keyway Depth (Inch) | 0.2480 |
| Keyway Depth (Decimal Inch) | 0.2480 |
| Pitch | Fine |
| ISO Number | MFSN88050R-4T-M-G |
| Counterbore Diameter (Decimal Inch) | 0.6890 |
| Toolholder Material | Steel |
