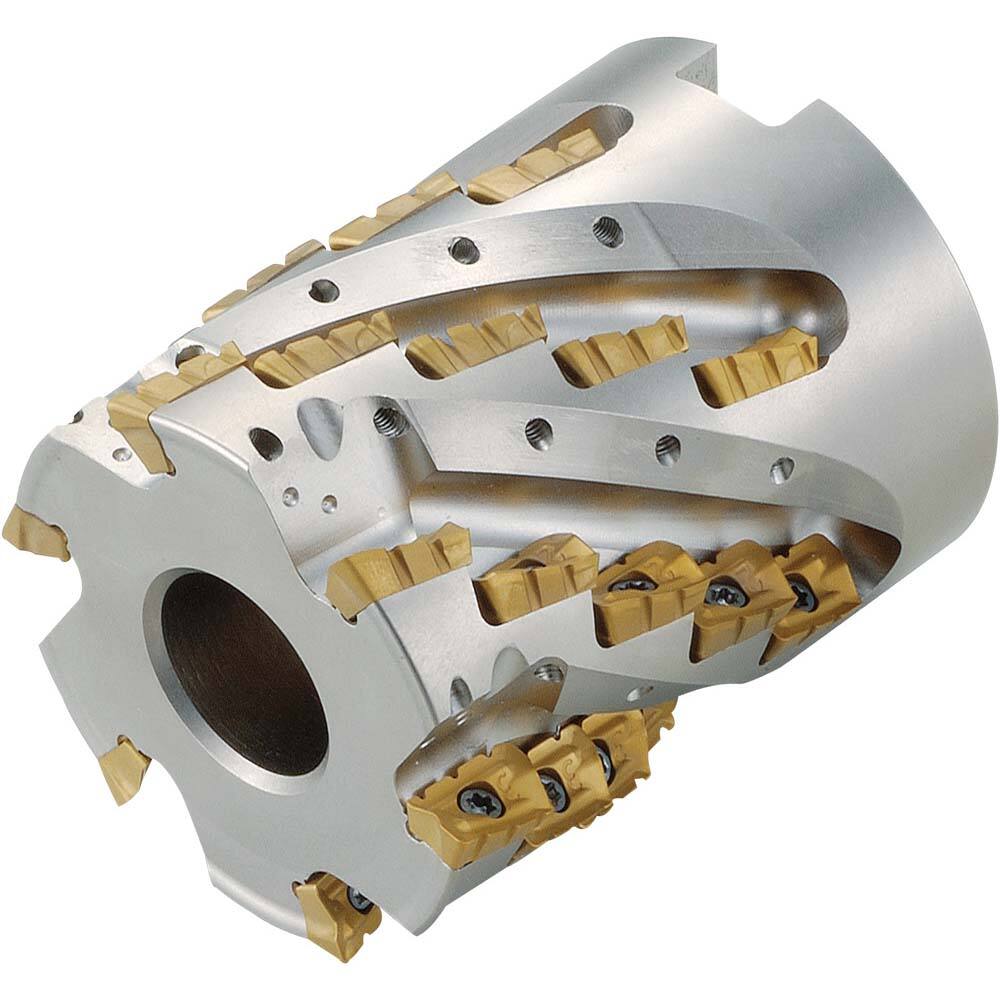

Kyocera - Indexable Square-Shoulder Face Mills; Cutting Diameter (Inch): 2 ; Cutting Diameter (Decimal Inch): 2.0000 ; Arbor Hole Diameter (Inch): 0.75 ; Lead Angle: 90 ; Overall Height (mm): 63.00000 ; Insert Compatibility: BDMT11T308ER-N2; BDMT11T308ER
Item #: 28506152
Brand: Kyocera
Model #: 8824807
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (Inch): 2 ; Cutting Diameter (Decimal Inch): 2.0000 ; Arbor Hole Diameter (Inch): 0.75 ; Lead Angle: 90 ; Overall Height (mm): 63.00000 ; Insert Compatibility: BDMT11T308ER-N2; BDMT11T308ER-N3
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Inch) | 0.75 |
| Lead Angle | 90 |
| Overall Height (mm) | 63.00000 |
| Insert Compatibility | BDMT11T308ER-N2; BDMT11T308ER-N3 |
| Series | MEC |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 46.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 30 |
| Insert Holding Method | Screw |
| Cutter Style | MECH |
| Number of Flutes | 6 |
| Keyway Width (Inch) | 0.3125 |
| Keyway Depth (mm) | 5 |
| ISO Number | MECH2000R11-5-6T |
| Counterbore Diameter (Decimal Inch) | 0.6299 |
| Toolholder Material | Steel |
