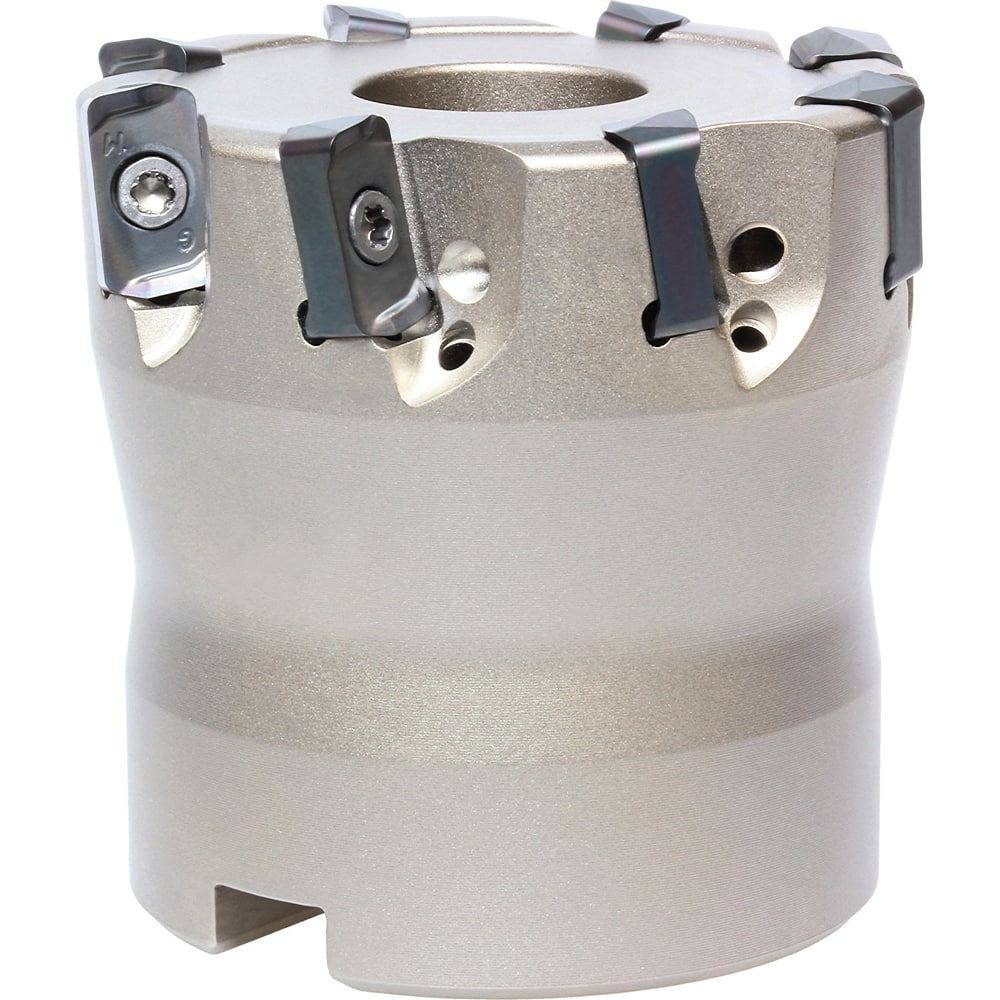

Kyocera - Indexable High-Feed Face Mills; Cutting Diameter (Decimal Inch): 1.6850 ; Maximum Depth of Cut (mm): 1.00 ; Arbor Hole Diameter (Decimal Inch): 0.7500 ; Overall Height (Decimal Inch): 1.9680 ; Series: MFH ; Cutter Style: MFH
Item #: 28494888
Brand: Kyocera
Model #: 8606924
Product Specifications
Indexable High-Feed Face Mills; Cutting Diameter (Decimal Inch): 1.6850 ; Maximum Depth of Cut (mm): 1.00 ; Arbor Hole Diameter (Decimal Inch): 0.7500 ; Overall Height (Decimal Inch): 1.9680 ; Series: MFH ; Cutter Style: MFH
| Cutting Diameter (Decimal Inch) | 1.6850 |
| Maximum Depth of Cut (mm) | 1.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (Decimal Inch) | 1.9680 |
| Series | MFH |
| Cutter Style | MFH |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | LOGU03? |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 8600.000 |
| Number of Flutes | 8 |
| Through Coolant | Through Coolant |
| Keyway Width (Decimal Inch) | 0.3120 |
| Manufacturers Catalog Number | MFH2000R038T |
