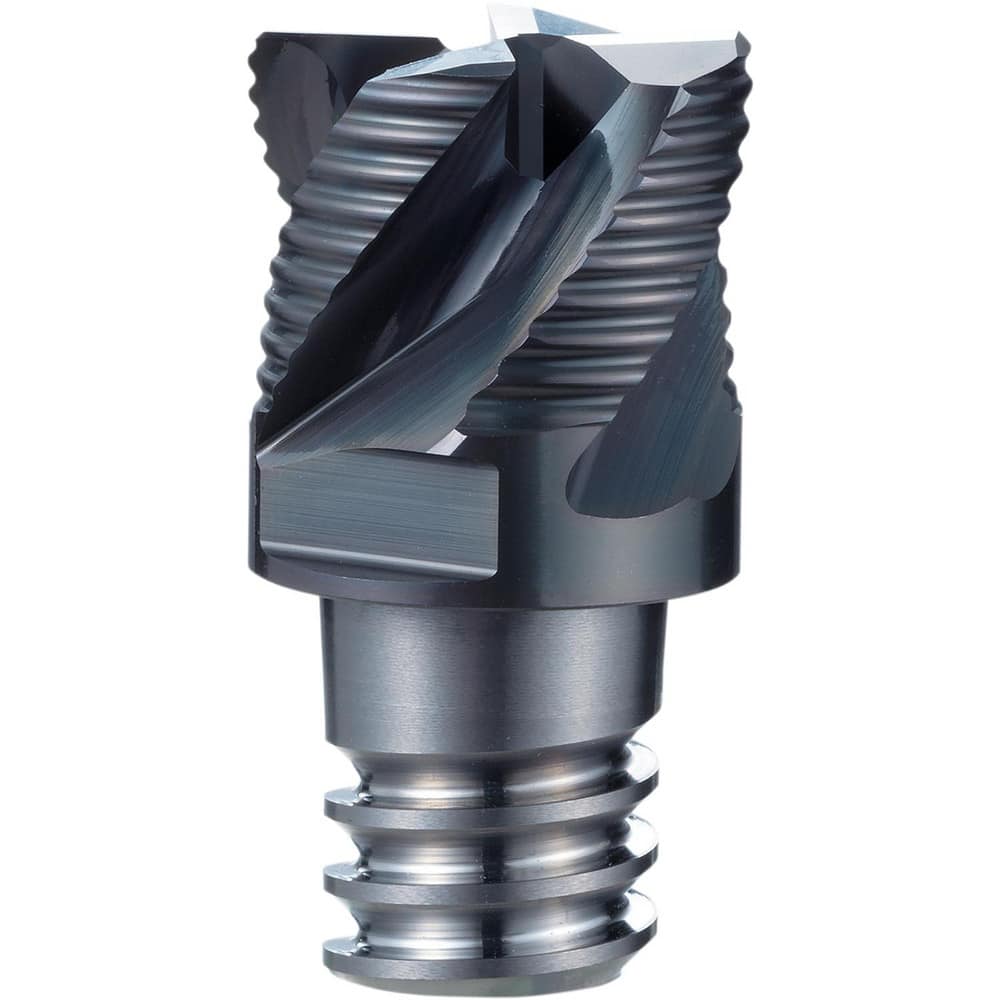

Square End Mill Heads; Mill Diameter (Inch): 3/4; Mill Diameter (Decimal Inch): 0.7500; Number of Flutes: 4; Length of Cut (Decimal Inch): 0.4720; Length of Cut (mm): 12.0000; Connection Type: PXNH; Overall Length (Inch): 0.8070 in; Material: Solid Carbid
Item #: 26307835
Brand: OSG
Model #: 52316002
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number of Flutes | 4 |
| Length of Cut (Decimal Inch) | 0.4720 |
| Length of Cut (mm) | 12.0000 |
| Connection Type | PXNH |
| Overall Length (Inch) | 0.8070 in |
| Material | Solid Carbide |
| Finish/Coating | Cr |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Center Cutting | Center Cutting |
| Helix Angle | 40; 42 |
| Manufacturer Grade | XP3225 |
| Maximum Helix Angle | 42 |
| Minimum Helix Angle | 40 |
