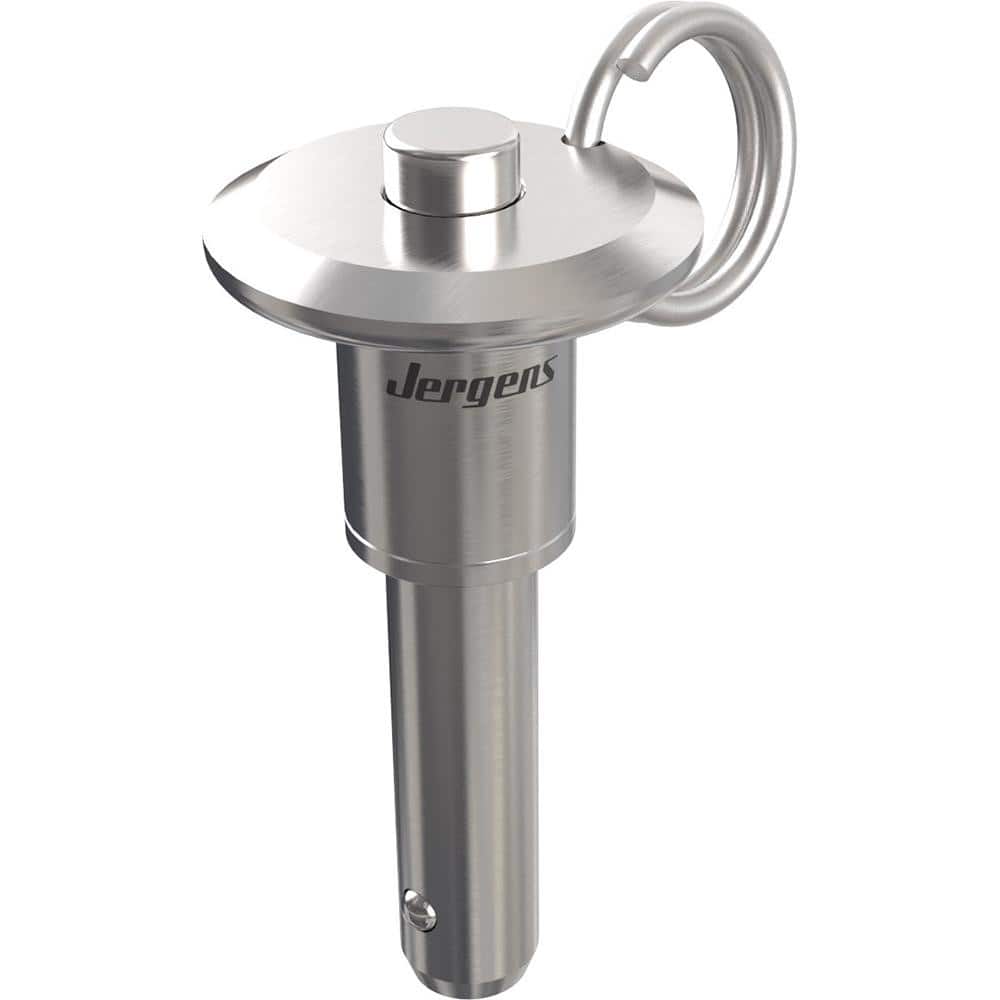

Ball Grip Quick-Release Pin: Button Handle, 5/8″ Pin Dia, 5″ Usable Length 6-1/2″ OAL, 17-4 Stainless Steel, Stainless Steel Handle
Item #: 26302539
Brand: Jergens
Model #: 806525
Product Specifications
| Pin Type | Ball Grip Quick-Release |
| Handle Type | Button Handle |
| Pin Diameter (Inch) | 5/8 |
| Pin Diameter (Decimal Inch) | 0.6250 |
| Usable Length (Inch) | 5 |
| Usable Length (Decimal Inch) | 5.0000 |
| Overall Length (Inch) | 6-1/2 |
| Overall Length (Decimal Inch) | 6.5000 |
| Pin Material | Stainless Steel |
| Pin Material Grade | 17-4 |
| Ball Material | Stainless Steel |
| Ball Material Grade | 17-4 |
| Ball Hardness | Rockwell C40 |
| Handle Material | Stainless Steel |
| Breaking Strength | 57800 |
| Pin Finish/Coating | Passivated |
| Spindle Hardness | Rockwell C40 |
| Fastener Standard | NASM 23460 |
