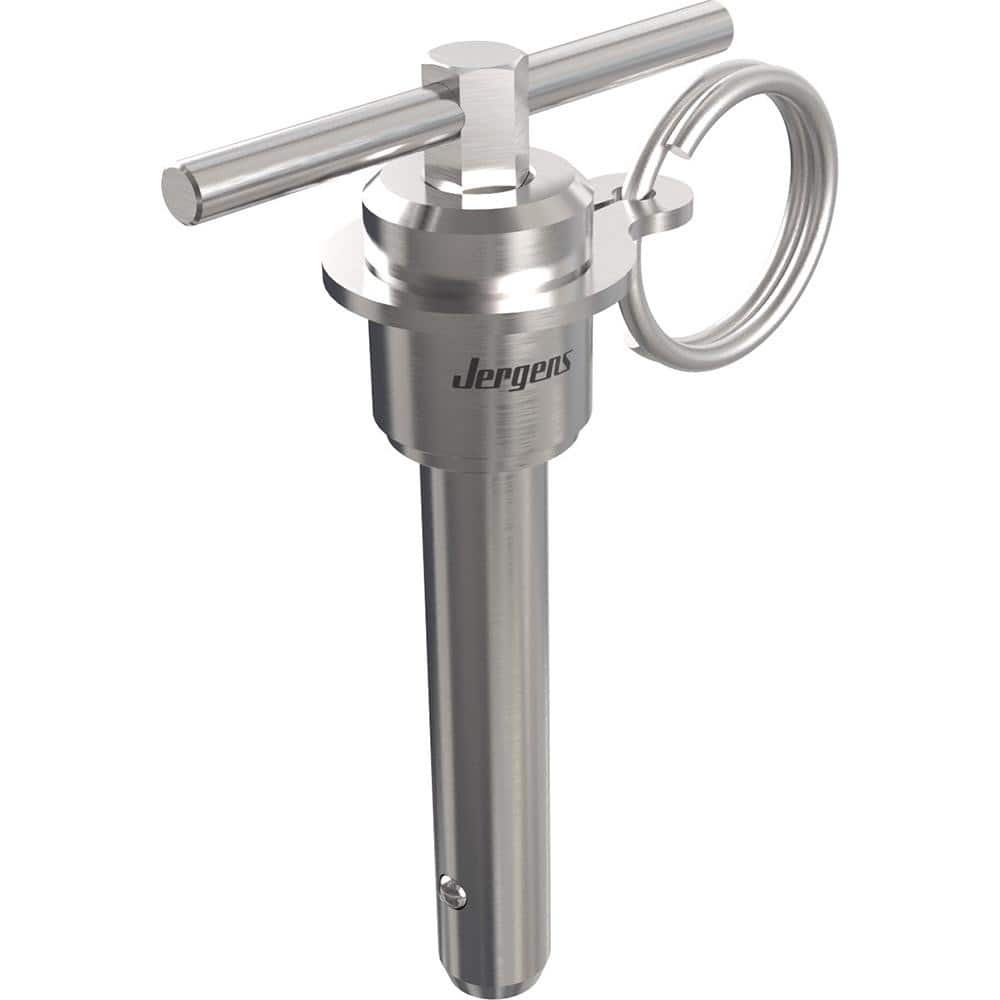

Ball Grip Quick-Release Pin: T-Handle, 7/16″ Pin Dia, 1-3/4″ Usable Length 3.09″ OAL, 17-4 Stainless Steel, Stainless Steel Handle
Item #: 26302505
Brand: Jergens
Model #: 803469
Product Specifications
| Pin Type | Ball Grip Quick-Release |
| Handle Type | T-Handle |
| Pin Diameter (Inch) | 7/16 |
| Pin Diameter (Decimal Inch) | 0.4375 |
| Usable Length (Inch) | 1-3/4 |
| Usable Length (Decimal Inch) | 1.7500 |
| Overall Length (Decimal Inch) | 3.0900 |
| Pin Material | Stainless Steel |
| Pin Material Grade | 17-4 |
| Ball Material | Stainless Steel |
| Ball Material Grade | 17-4 |
| Ball Hardness | Rockwell C40 |
| Handle Material | Stainless Steel |
| Breaking Strength | 28500 |
| Pin Finish/Coating | Passivated |
| Spindle Hardness | Rockwell C40 |
| Fastener Standard | MS17988; NAS1353-NAS1366; NASM 23460 |
