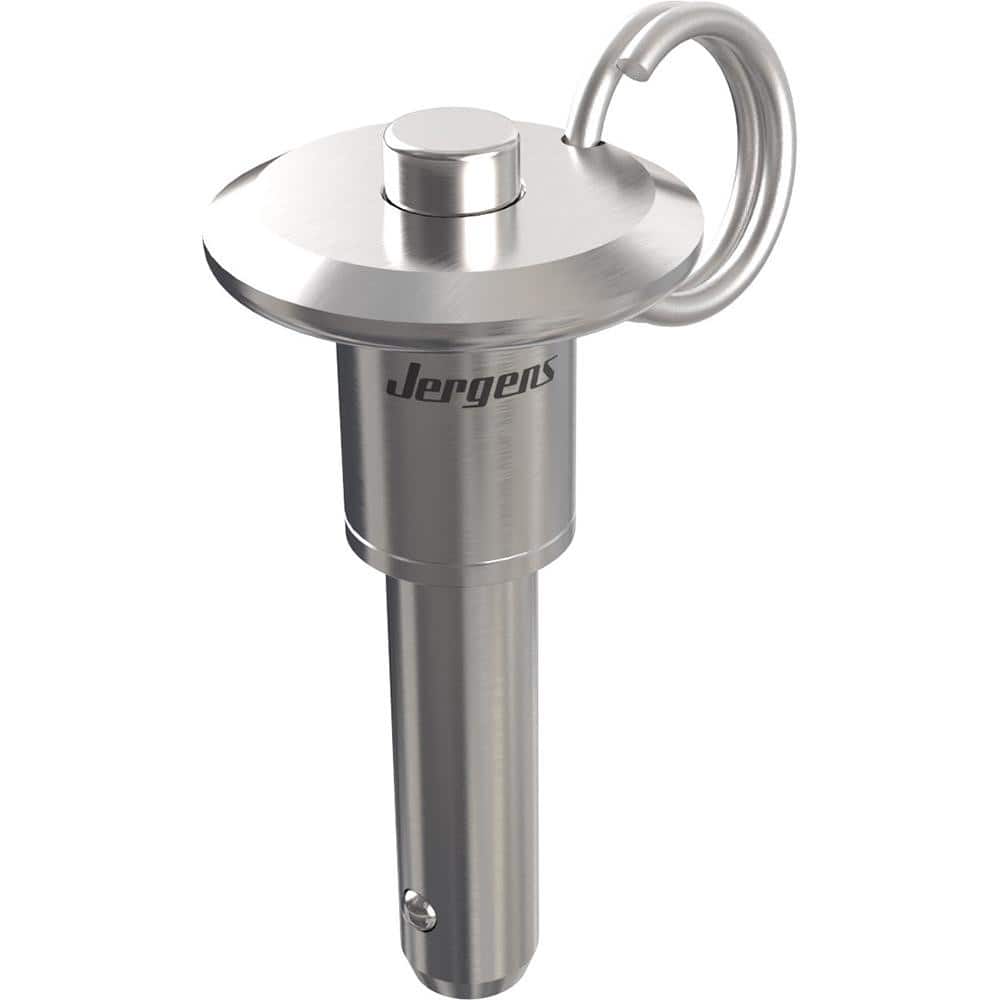

Ball Grip Quick-Release Pin: Button Handle, 9/16″ Pin Dia, 1-1/2″ Usable Length 2.91″ OAL, 17-4 Stainless Steel, Stainless Steel Handle
Item #: 26302471
Brand: Jergens
Model #: 806500
Product Specifications
| Pin Type | Ball Grip Quick-Release |
| Handle Type | Button Handle |
| Pin Diameter (Inch) | 9/16 |
| Pin Diameter (Decimal Inch) | 0.5625 |
| Usable Length (Inch) | 1-1/2 |
| Usable Length (Decimal Inch) | 1.5000 |
| Overall Length (Decimal Inch) | 2.9100 |
| Pin Material | Stainless Steel |
| Pin Material Grade | 17-4 |
| Ball Material | Stainless Steel |
| Ball Material Grade | 17-4 |
| Ball Hardness | Rockwell C40 |
| Handle Material | Stainless Steel |
| Breaking Strength | 46700 |
| Pin Finish/Coating | Passivated |
| Spindle Hardness | Rockwell C40 |
| Fastener Standard | NASM 23460 |
