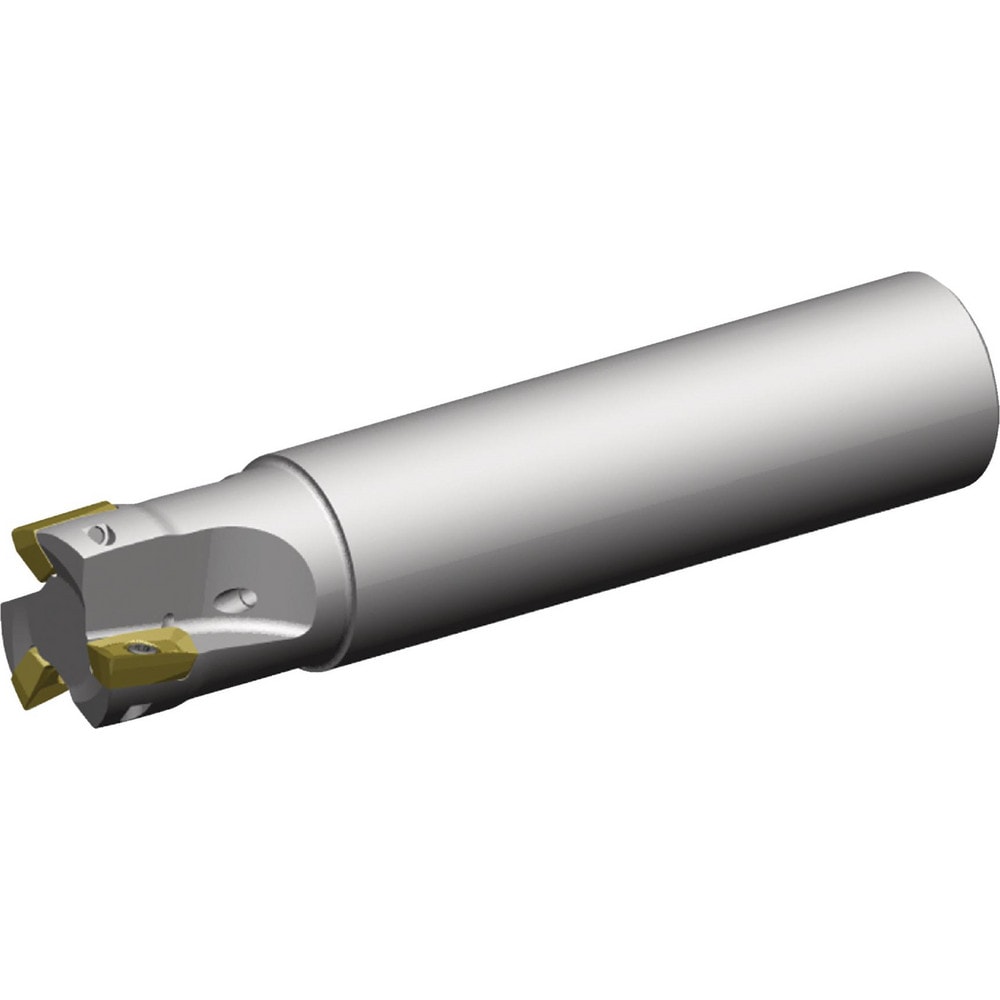

Indexable Square-Shoulder End Mill: 11D025Z03A25XD11L210, 25 mm Cut Dia, 50 mm Max Depth of Cut, 25 mm Dia Cylindrical Shank
Item #: 97478739
Brand: Widia
Model #: 5416705
Product Specifications
| Cutting Diameter (mm) | 25.00 |
| Overall Length (mm) | 210.00 |
| Maximum Depth of Cut (mm) | 50.00 |
| Cutter Style | VSM |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 5.3 |
| Tool Material | Steel |
| Series | VSM11 |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (mm) | 160.00 |
| Head Length (mm) | 50.00 |
| Maximum RPM | 30200 |
| Tool Application | Pocketing; Ramping; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Coolant Hole Diameter (mm) | 5.00 |
| Rake | Negative (Radial); Positive (Axial) |
| Complete Insert Compatibility | XD.T11.. |
| Insert Compatibility | XD.T11.. |
| Hand of Holder | Right Hand |
| Rake Angle | -6.92 (Radial),8 (Axial) |
| Multi-Use Tool | Yes |
| UNSPSC Code | 27112803 |
| ISO Number | VSM11D025Z03A25XD11L210 |
| Manufacturers Catalog Number | VSM11D025Z03A25XD11L210 |
| Usable Length (mm) | 50.00 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
