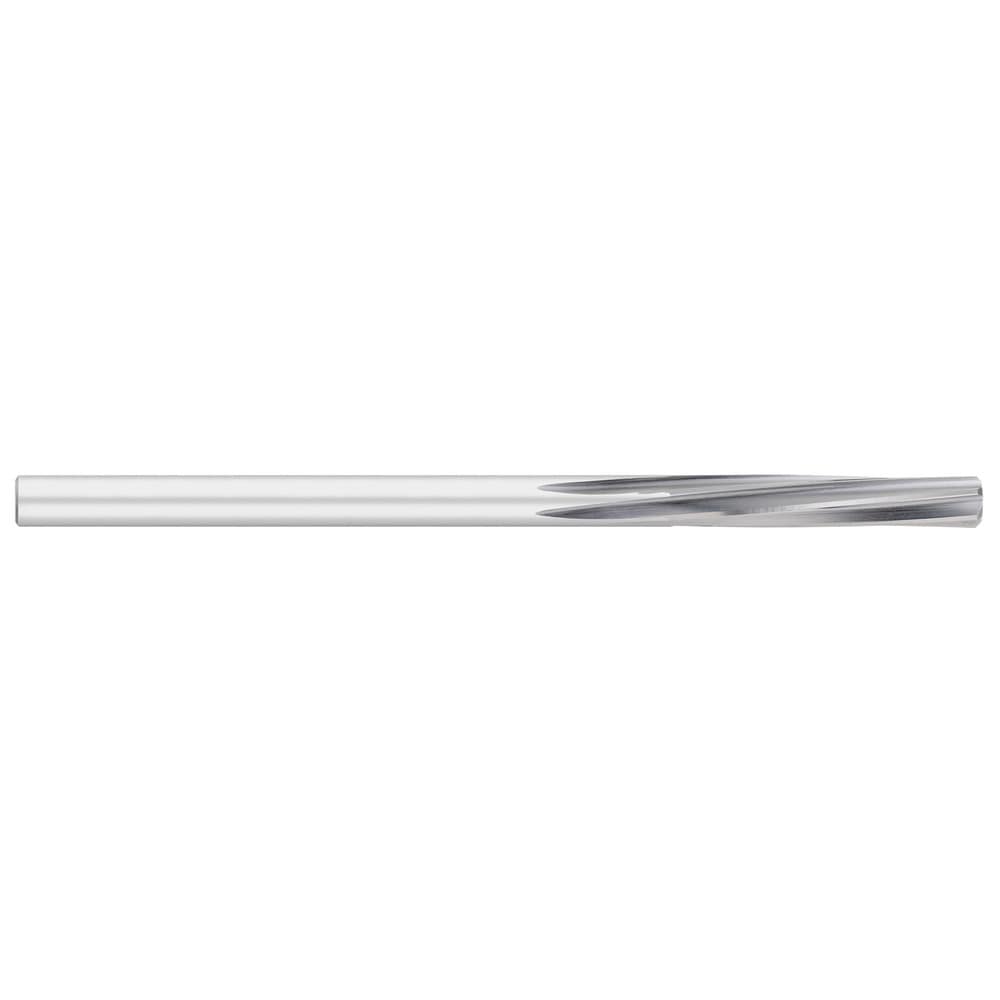

Chucking Reamer: 3/16" Dia, 4-1/2" OAL, 1-1/8" Flute Length, Straight-Cylindrical Shank, HSS
Item #: 07949597
Brand: Titan USA
Model #: TR97078
Product Specifications
| Reamer Diameter (Inch) | 3/16 |
| Reamer Diameter Range (Decimal Inch) | 0.1500 - 0.1999 |
| Reamer Diameter (Decimal Inch) | 0.1875 |
| Tool Material | HSS |
| Flute Type | Spiral |
| Spiral Direction | Left Hand |
| Coating/Finish | Bright/Uncoated |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Dowel Pin Reamer | No |
| Over/Under Size Reamer | No |
| Overall Length (Decimal Inch) | 4.5000 |
| Overall Length (Inch) | 4-1/2 |
| Number of Flutes | 6 |
| Shank Diameter (Decimal Inch) | 0.1805 |
| Flute Length (Inch) | 1-1/8 |
| Reamer Diameter Tolerance | +0.0002 to -0.0000 in |
| Series | TR97 |
| Cutting Direction | Right Hand |
| Additional Information | Left Hand Spiral; Reaming; High Speed Steel; Reamers; Chucking |
| UNSPSC Code | 23241611 |
