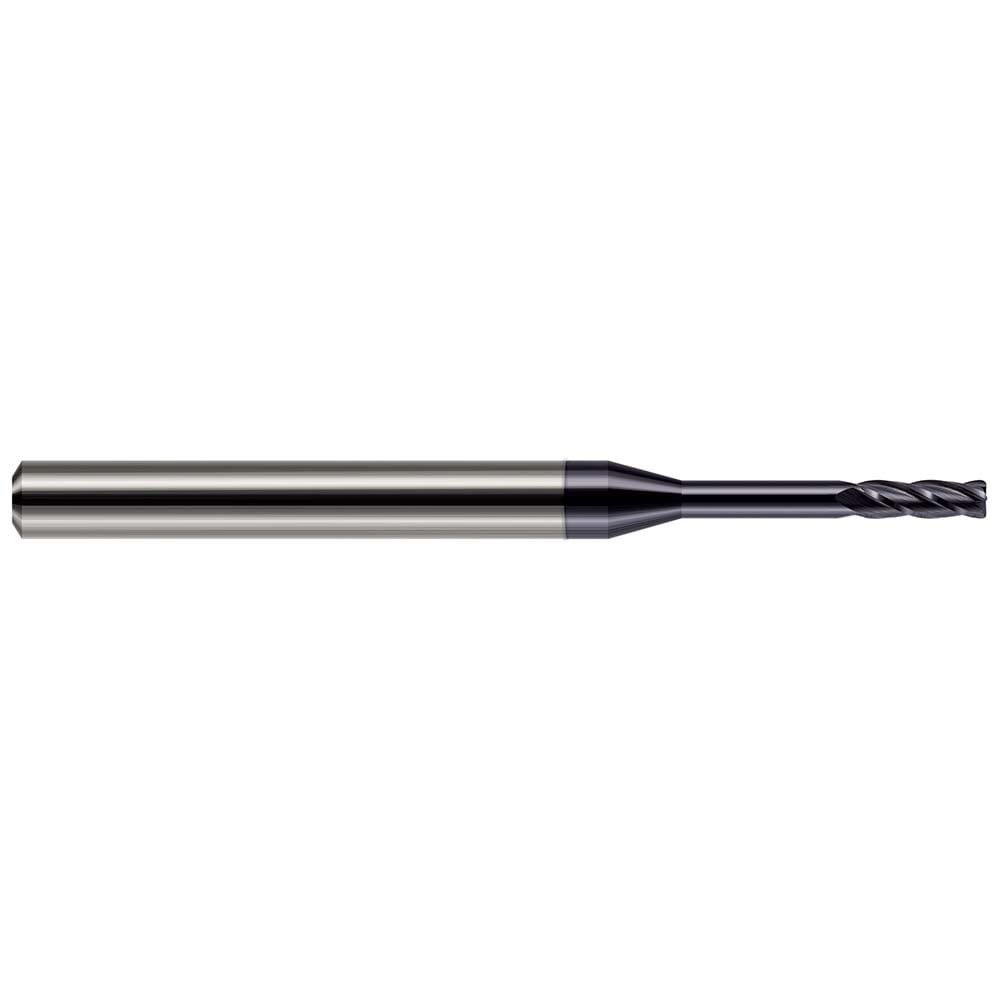

Corner Radius End Mill: 5/64" Dia, 15/64" LOC, 0.50 mm Radius, 4 Flute, Solid Carbide
Item #: 06093306
Brand: Harvey Tool
Model #: 759378-C3
Product Specifications
| Mill Diameter (Inch) | 5/64 |
| Mill Diameter (Decimal Inch) | 0.078 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 15/64 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0200 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.50 |
| Overall Length (Decimal Inch) | 2 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2340 |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Reach Length (Decimal Inch) | 0.6250 |
| Reach Length (Inch) | 5/8 |
| UNSPSC Code | 27112803 |
| Series | Standard Flute; Miniature End Mills - Corner Radius - Long Reach |
