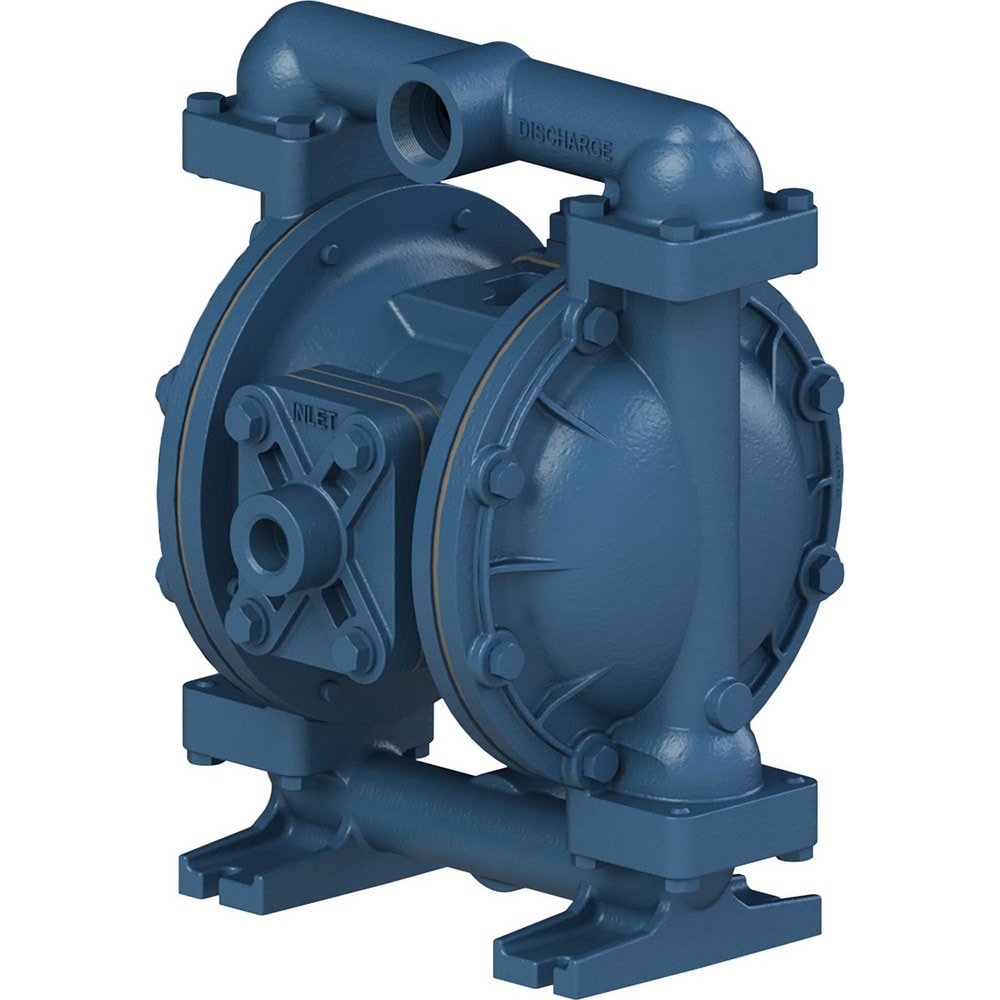

Air-Operated Diaphragm Pumps; Maximum Flow Rate: 45.0 GPM; Maximum Flow Rate (Gpm - 2 Decimals): 45.00; Pump Type: Metallic; Maximum Working Pressure (Psi
Item #: 07773039
Brand: SandPIPER
Model #: S1FB1A2TANS000.
Product Specifications
| Maximum Flow Rate | 45.0 GPM |
| Maximum Flow Rate (Gpm - 2 Decimals) | 45.00 |
| Pump Type | Metallic |
| Maximum Working Pressure (Psi - 3 Decimals) | 125.000 |
| Maximum Working Pressure | 125.000 psi |
| Maximum Particle Size | 0.25 in |
| Housing Material | Aluminum |
| Thread Type | NPT |
| Inlet Size | 0.5 in |
| Inlet/Outlet NPT | 1 |
| Cubic Feet Per Minute | 6.02 |
| Diaphragm Material | Polytetrafluroethylene |
| Ball Material | Polytetrafluroethylene |
| Check Seat Material | Polytetrafluroethylene |
| Port Size | 1 |
| Port Type | NPT |
| Body Material | Aluminum |
| Length (Decimal Inch - 4 Decimals) | 10.3750 |
| Height (Decimal Inch) | 12.718700 |
| Maximum Temperature (F) ( - 0 Decimals) | 220.000 |
| Maximum Solid Size (Inch) | 1/4 |
| Air Inlet Size (Inch) | 1/2 |
| Width (Decimal Inch - 4 Decimals) | 10.2500 |
| Maximum Cubic Feet Per Minute (CFM) | 6.02 |
| UNSPSC Code | 40151548 |
