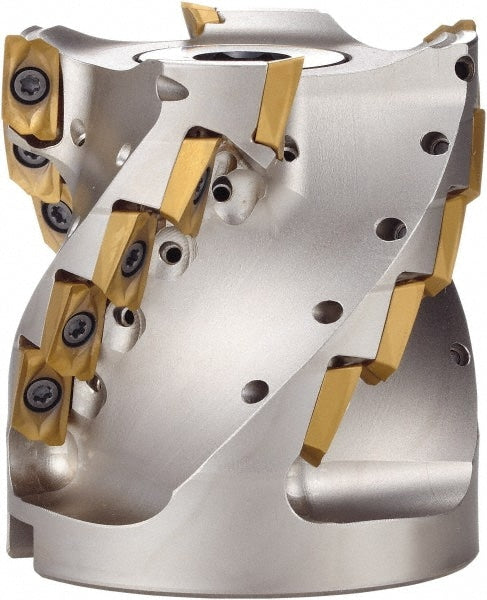

2-1/2" Cut Diam, 1" Arbor Hole Diam, 2.913" Max Depth, Indexable Square-Shoulder Face Mill
Item #: 55704290
Brand: OSG
Model #: 53001001
Product Specifications
| Maximum Cutting Diameter (Inch) | 2-1/2 |
| Maximum Cutting Diameter (mm) | 63.50 |
| Maximum Depth of Cut (Decimal Inch) | 2.9130 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | ZDKT15... |
| Cutter Style | PSEL |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Series | 53001 |
| Overall Height (Decimal Inch) | 2.9130 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Hub Diameter (Decimal Inch) | 2.3620 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Keyway Depth (Decimal Inch) | 0.2360 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 4 |
| Number Of Flutes | 4 |
| Maximum Cutting Diameter (Inch) | 2-1/2 |
| Maximum Cutting Diameter (mm) | 63.50 |
| Maximum Depth of Cut (Decimal Inch) | 2.9130 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | ZDKT15... |
| Cutter Style | PSEL |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Series | 53001 |
| Overall Height (Decimal Inch) | 2.9130 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Hub Diameter (Decimal Inch) | 2.3620 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Keyway Depth (Decimal Inch) | 0.2360 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 4 |
| Number Of Flutes | 4 |
| MSC Part # | 55704290 |
| Mfr Part # | 53001001 |
| Country of Origin Country of Origin is subject to change | Luxembourg |
