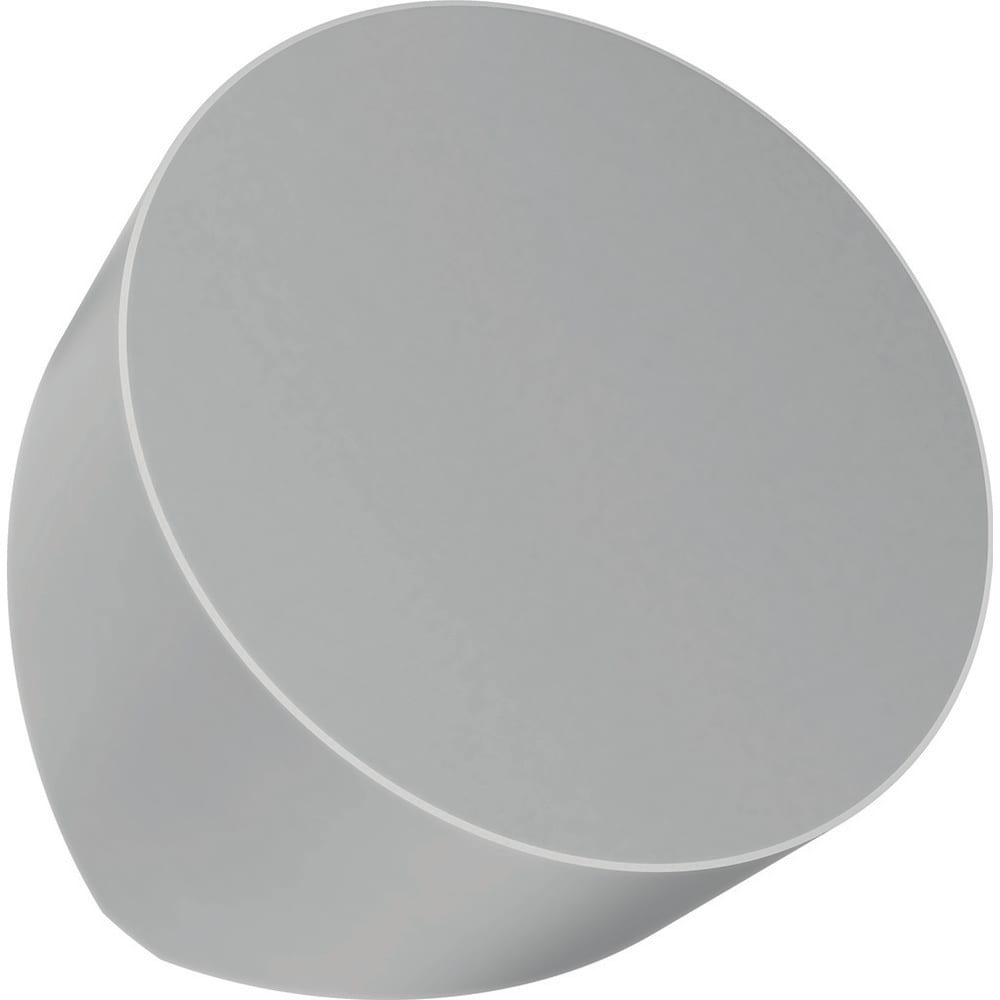

Turning Insert: RCGX45E WIS30, Ceramic
Item #: 91724880
Brand: Walter
Model #: 8377373
Product Specifications
| ANSI Insert Code | RCGX45 |
| ISO Insert Code | RCGX120700 |
| Relief Angle | 7.000 |
| Insert Style | RCGX |
| Corner Radius (mm) | 6.35 |
| Included Angle | 0.00 |
| Manufacturer Grade | WIS30 |
| Coating/Finish | Si3N4 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 7.94 |
| Series | RCGX |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Ceramic |
| Insert Shape | Round |
| Chip Breaker Operation | Finishing; Roughing |
| Grade Characteristics | Special, Super Alloys (S) - High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | R |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.0000 |
| Maximum Depth of Cut (mm) | 3.60 |
| Insert Holding Method | Clamp |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Length (mm) | 12.70 |
| Manufacturers Catalog Number | RCGX120700E WIS30 |
| Chip Breaker | E |
| Width (mm - 2 Decimals) | 12.70 |
| ANSI Size Code | 45 |
| ISO Size Code | 120700 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 12 |
| Country of Origin | Germany |
