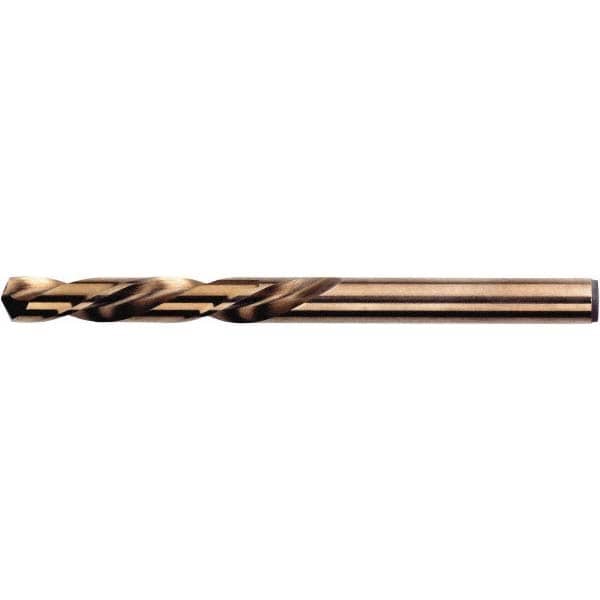

Jobber Drill: 7/16" Dia, 135 deg Point, High Speed Steel
Item #: 07555808
Brand: Irwin
Model #: 30528
Product Specifications
| Drill Bit Size (Inch) | 7/16 |
| Drill Bit Size (Decimal Inch) | 0.4375 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Regular Spiral |
| Cutting Direction | Left Hand |
| Point Type | Split Point |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 2-5/8 |
| Shank Diameter (Decimal Inch) | 0.4375 |
| Overall Length (mm) | 115.89 |
| Overall Length (Inch) | 4-9/16 |
| Overall Length (Decimal Inch) | 4.5625 |
| Spiral Type | Regular |
| Flute Length (mm) | 66.68 |
| Flute Length (Decimal Inch) | 2.6250 |
| Series | 305 |
| Tool Application | Drilling |
| Flute By Diameter Ratio | 6xD |
| Shank Diameter (Inch) | 7/16 |
| Maximum Drilling Depth (Decimal Inch) | 2.6250 |
| Maximum Drilling Depth (Inch) | 2-5/8 |
| Shank Length (Decimal Inch) | 1.9375 |
| Shank Length (Inch) | 1-15/16 |
| Number of Flats | 0 |
| Shank Type | Straight |
| Tool Performance | General Purpose |
| Double Margin | No |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.4000 - 0.5000 |
| UNSPSC Code | 23241634 |
