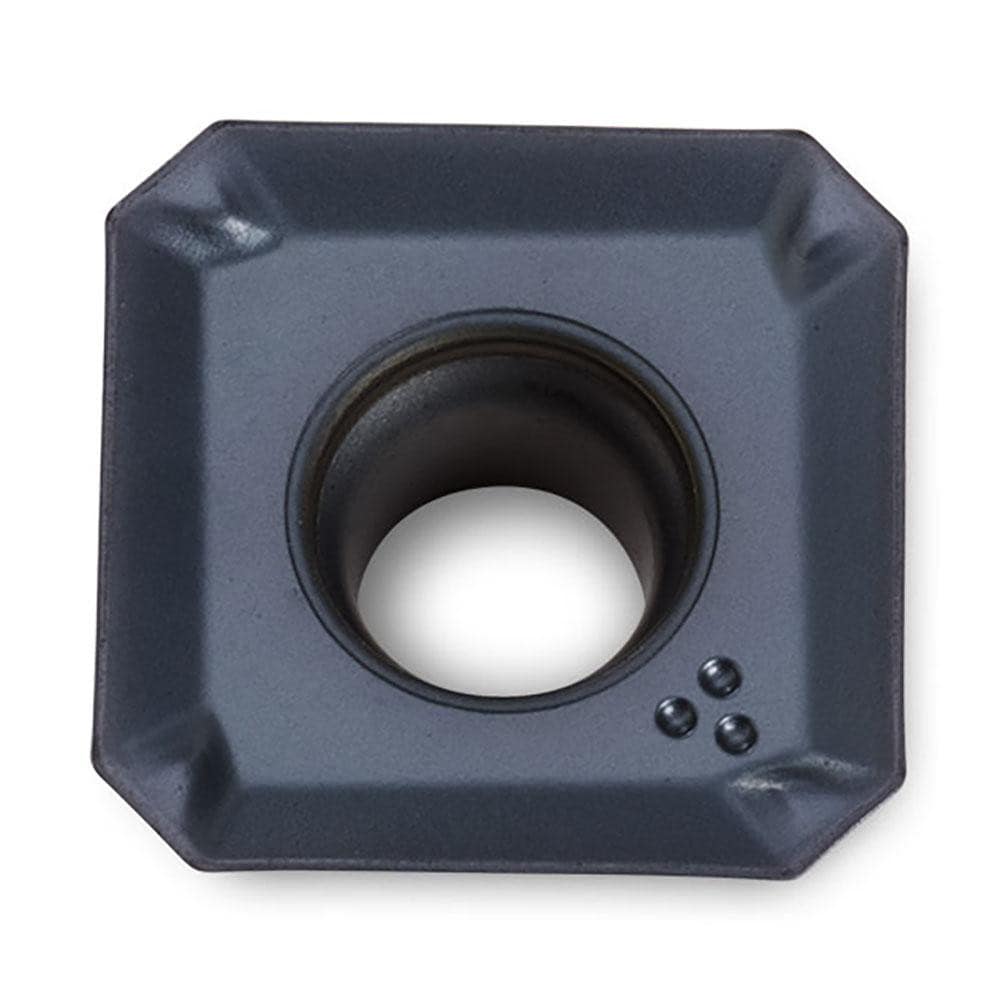

Milling Insert: SEKT09T3AFN IN1030 IN1030, Solid Carbide
Item #: 85533545
Brand: Ingersoll Cutting Tools
Model #: 5805582
Product Specifications
| Insert Style | SEKT |
| Insert Size | 09 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | IN1030 |
| Corner Radius (Decimal Inch) | 0.0100 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1650 |
| Coating/Finish | TiCN |
| Relief Angle | 20.00 |
| Insert Size Code | 09T3 |
| Material Grade | Coarse Grain |
| Inscribed Circle (Decimal Inch) | 0.3780 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Neutral |
| Series | SEKT |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | SEKT09T3 IN1030 |
| Iso Code | SEKT09T3AFN IN1030 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | 5805582 |
| Cutter Series Compatibility | 5N6F; 15N1F_R00 |
| Chip Breaker | None |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3780 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3780 |
