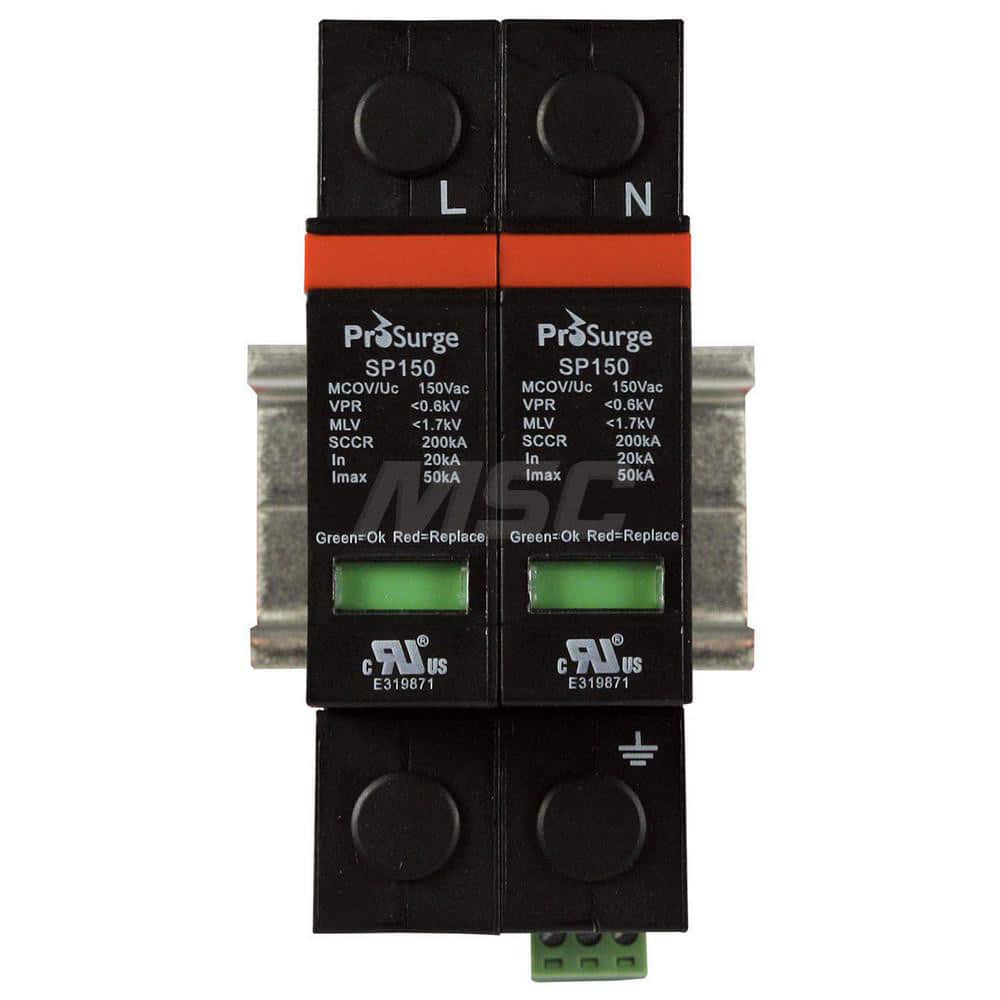

Hardwired Surge Protectors; Voltage: 240; Nominal Discharge Current (kA): 20.00; Maximum Continuing Operating Voltage: 320 VAC; Short Circuit Current (kA): 200; Surge Protection Capacity (kA): 50; Mounting Type: DIN Rail; Number of Wires: 3; Overall Lengt
Item #: 20960712
Brand: Prosurge
Model #: ASISP150-2P
Product Specifications
| Voltage | 240 |
| Nominal Discharge Current (kA) | 20.00 |
| Maximum Continuing Operating Voltage | 320 VAC |
| Short Circuit Current (kA) | 200 |
| Surge Protection Capacity (kA) | 50 |
| Mounting Type | DIN Rail |
| Number of Wires | 3 |
| Overall Length (Decimal Inch) | 2.598 |
| Overall Length (mm) | 66 |
| Overall Width (Inch) | 1.417 |
| Overall Width (mm) | 36 |
| Overall Depth (Decimal Inch) | 3.543 |
| Overall Depth (mm) | 90 |
| Standards Met | UL1449 |
| Number of Phases | 2 |
| Number of Poles | 2 |
