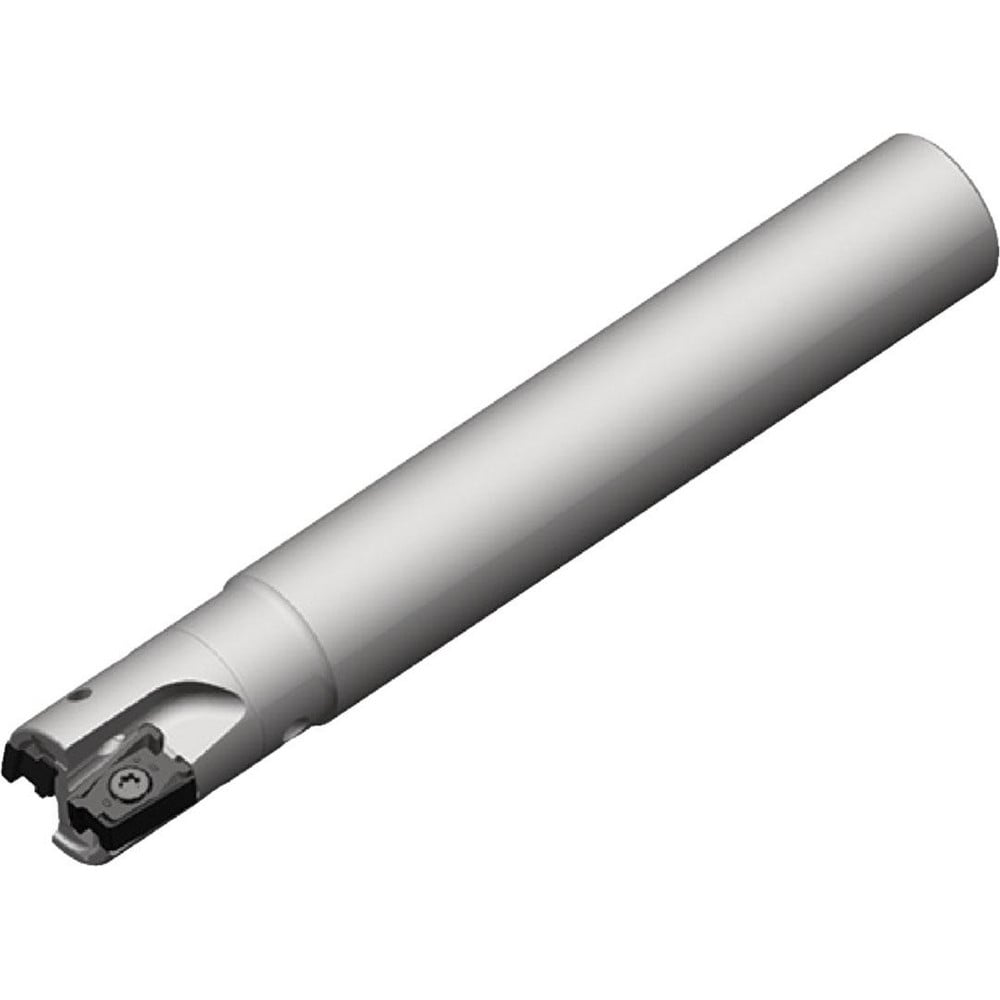

Indexable Square-Shoulder End Mill: 490D150Z04C125XN15L800, 0.5906" Max Depth of Cut, 1-1/4" Dia Cylindrical Shank
Item #: 98779234
Brand: Widia
Model #: 5873103
Product Specifications
| Overall Length (Decimal Inch) | 8.0000 |
| Overall Length (Inch) | 8 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Cutter Style | VSM |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 0 |
| Tool Material | Steel |
| Series | VSM490-15 |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (Inch) | 5-3/4 |
| Shank Length (Decimal Inch) | 5.7500 |
| Head Length (Inch) | 2-1/4 |
| Head Length (Decimal Inch) | 2.25 |
| Maximum RPM | 19500 |
| Tool Application | Pocketing; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Coolant Hole Diameter (Decimal Inch) | 0.1570 |
| Rake | Negative (Axial); Negative (Radial) |
| Complete Insert Compatibility | XNGU15.. |
| Insert Compatibility | XNGU15.. |
| Hand of Holder | Right Hand |
| Rake Angle | -15.4 (Radial),-8 (Axial) |
| Multi-Use Tool | Yes |
| UNSPSC Code | 27112803 |
| ISO Number | VSM490D150Z04C125XN15L800 |
| Manufacturers Catalog Number | VSM490D150Z04C125XN15L800 |
| Number Of Flutes | 4 |
| Usable Length (Decimal Inch) | 2.2500 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
