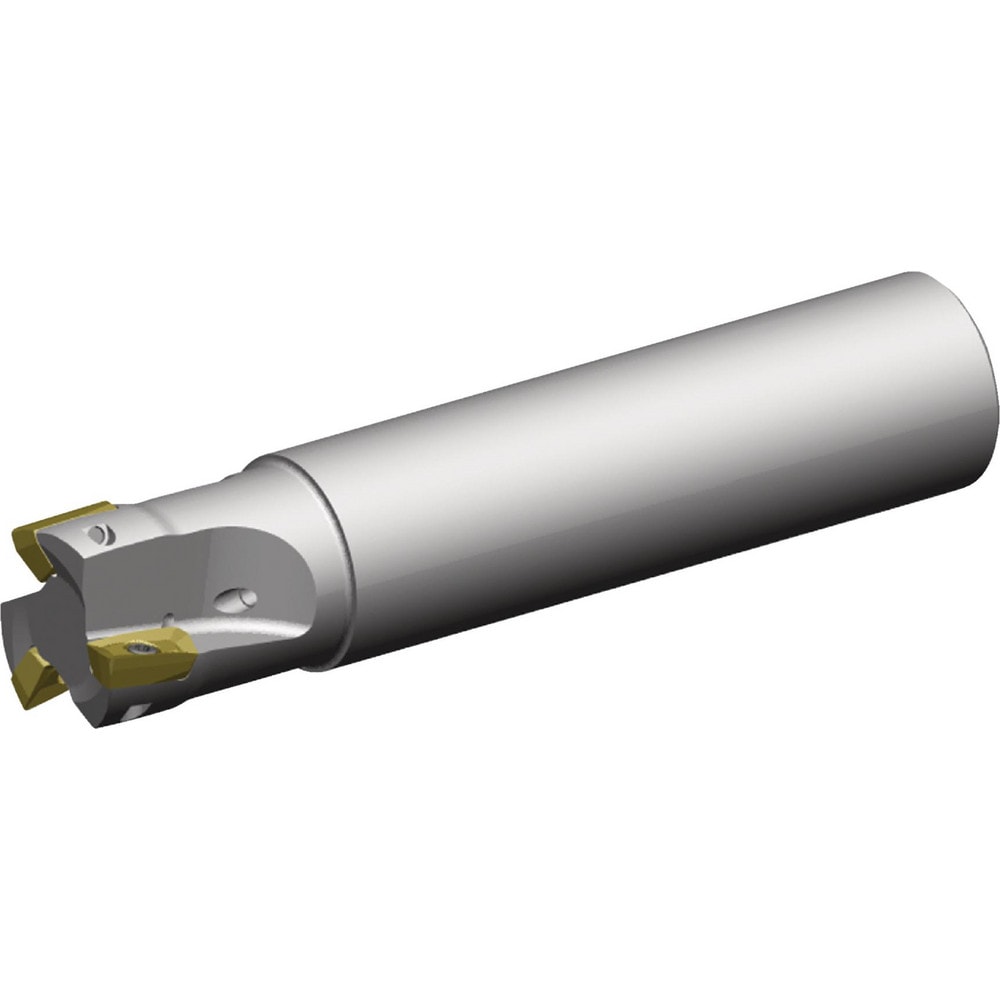

Indexable Square-Shoulder End Mill: 17D032Z03A32XD17L120, 32 mm Cut Dia, 50 mm Max Depth of Cut, 32 mm Dia Cylindrical Shank
Item #: 98778368
Brand: Widia
Model #: 5988057
Product Specifications
| Cutting Diameter (mm) | 32.00 |
| Overall Length (mm) | 120.00 |
| Maximum Depth of Cut (mm) | 50.00 |
| Cutter Style | VSM |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 5.7 |
| Tool Material | Steel |
| Series | VSM17 |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (mm) | 70.00 |
| Head Length (mm) | 50.00 |
| Maximum RPM | 34700 |
| Tool Application | Pocketing; Ramping; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Coolant Hole Diameter (mm) | 7.00 |
| Rake | Negative (Radial); Positive (Axial) |
| Complete Insert Compatibility | XD.T17.. |
| Insert Compatibility | XD.T17.. |
| Hand of Holder | Right Hand |
| Rake Angle | -7.8 (Radial),7.5 (Axial) |
| Multi-Use Tool | Yes |
| UNSPSC Code | 27112803 |
| ISO Number | VSM17D032Z03A32XD17L120 |
| Manufacturers Catalog Number | VSM17D032Z03A32XD17L120 |
| Usable Length (mm) | 50.00 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
