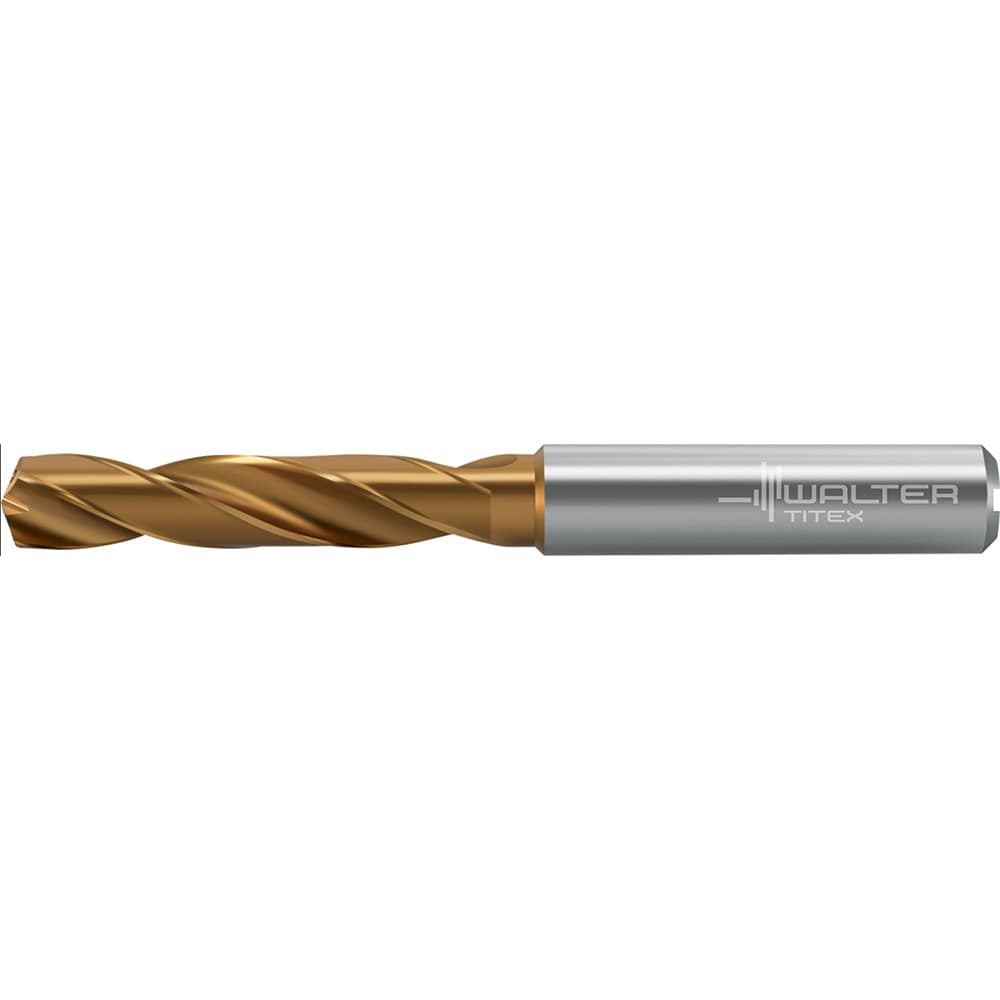

Screw Machine Length Drill Bit: 0.2638" Dia, 140 deg Point, Solid Carbide
Item #: 12243879
Brand: Walter-Titex
Model #: 7378154
Product Specifications
| Drill Bit Size (mm) | 6.70 |
| Drill Bit Size (Decimal Inch) | 0.2638 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multi-layer |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Cast Iron; Steel |
| Point Type | Standard |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Overall Length (Decimal Inch) | 3.1100 |
| Series | DC160-03-A1 |
| Proprietary Coating/Finish | TiSiAlCrN/AlTiN |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 0.9450 |
| Shank Length (Decimal Inch) | 1.4170 |
| Drill Point Length (Decimal Inch) | 0.0480 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | Universal Advance |
| Drill Bit Diameter Tolerance | m7 |
| Standards | ISO; DIN |
| Flute Length (Decimal Inch) | 1.3390 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
| Material Grade | WJ30ET |
| UNSPSC Code | 23241635 |
