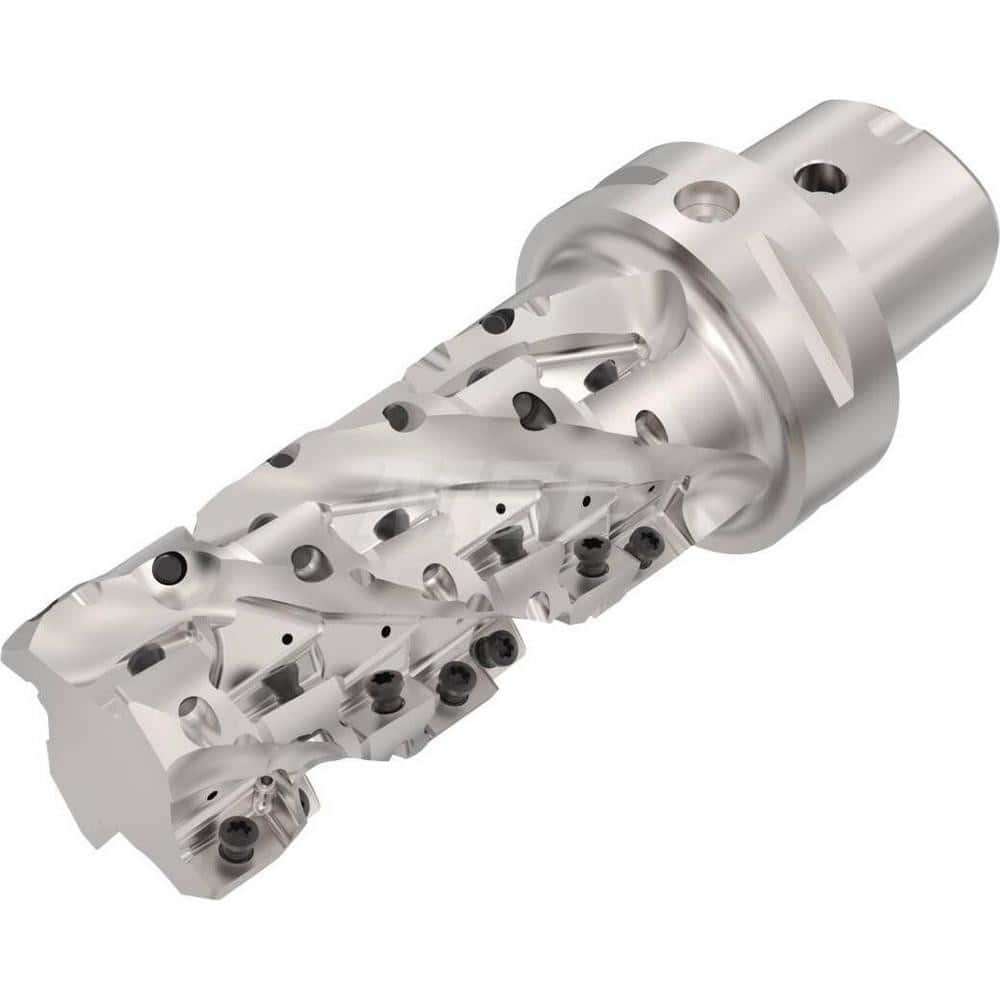

Indexable Square-Shoulder End Mill: C6R217690200389XO164A, 2.0000'' Cut Dia, 3.8580'' Max Depth of Cut, 2.4800'' Shank Dia, C6 Modular Connection, Modular Shank Uses 28, High Pressure,
Item #: 20646949
Brand: Seco
Model #: 10067023
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Minimum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Cutting Diameter (Inch) | 2 |
| Maximum Depth of Cut (Decimal Inch) | 3.8580 |
| Cutter Style | R217.69 |
| Shank Type | Modular |
| Shank Diameter (Decimal Inch) | 2.4800 |
| Maximum Ramping Angle | 1.9 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 6.8500 |
| Tool Material | Steel |
| Series | Turbo 16 Helical |
| Flute Type | Helical |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 1.4960 |
| Modular Connection Size | C6 |
| Maximum RPM | 11800 |
| Tool Application | Shouldering; Ramping |
| Tool Performance | High-Performance |
| Number Of Flutes | 4 |
| Usable Length (Decimal Inch) | 5.3500 |
| Number Of Cutter Inserts | 28 |
| Coolant Through | High Pressure |
