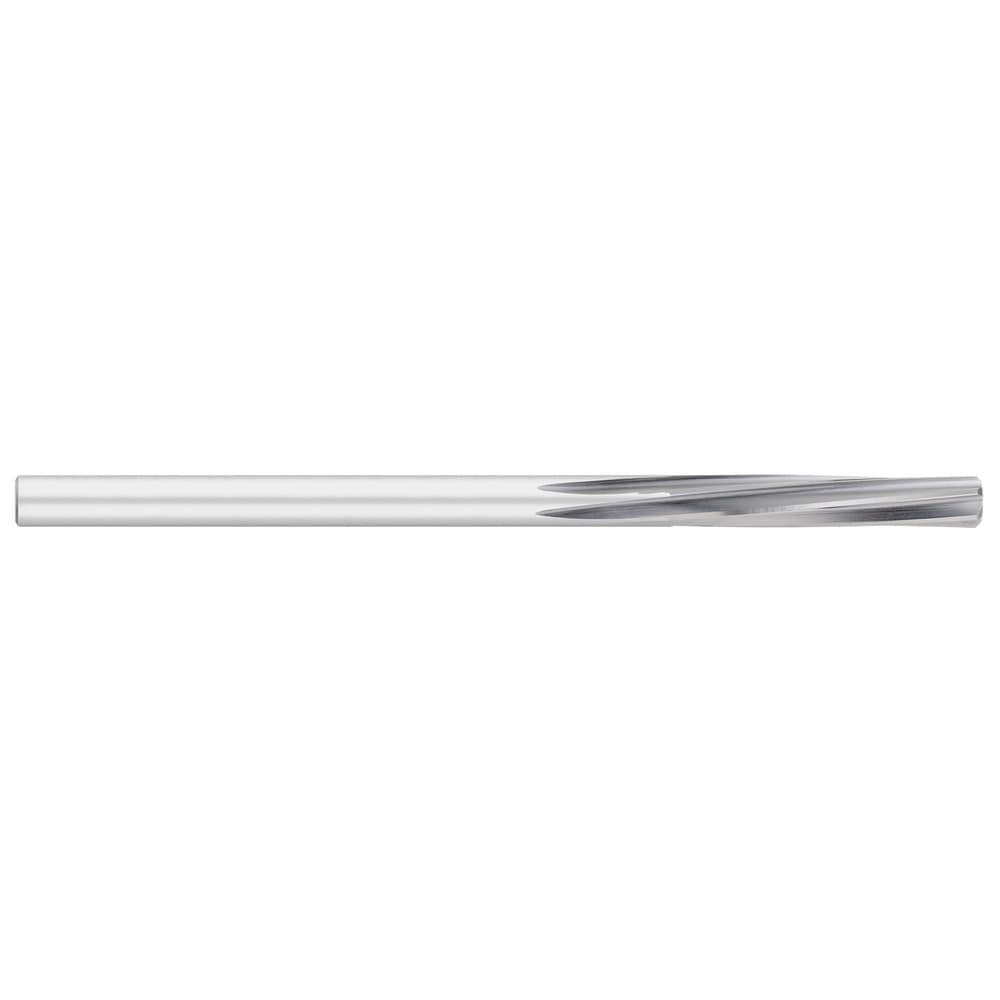

Chucking Reamer: 23/32" Dia, 9" OAL, 2-1/4" Flute Length, Straight-Cylindrical Shank, HSS
Item #: 07948698
Brand: Titan USA
Model #: TR97168
Product Specifications
| Reamer Diameter (Inch) | 23/32 |
| Reamer Diameter Range (Decimal Inch) | 0.7000 - 0.9999 |
| Reamer Diameter (Decimal Inch) | 0.7188 |
| Tool Material | HSS |
| Flute Type | Spiral |
| Spiral Direction | Left Hand |
| Coating/Finish | Bright/Uncoated |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Dowel Pin Reamer | No |
| Over/Under Size Reamer | No |
| Overall Length (Decimal Inch) | 9.0000 |
| Overall Length (Inch) | 9 |
| Number of Flutes | 8 |
| Shank Diameter (Decimal Inch) | 0.5615 |
| Flute Length (Inch) | 2-1/4 |
| Reamer Diameter Tolerance | +0.0001 to +0.0004 in |
| Series | TR97 |
| Cutting Direction | Right Hand |
| Additional Information | Left Hand Spiral; Reaming; High Speed Steel; Reamers; Chucking |
| UNSPSC Code | 23241611 |
