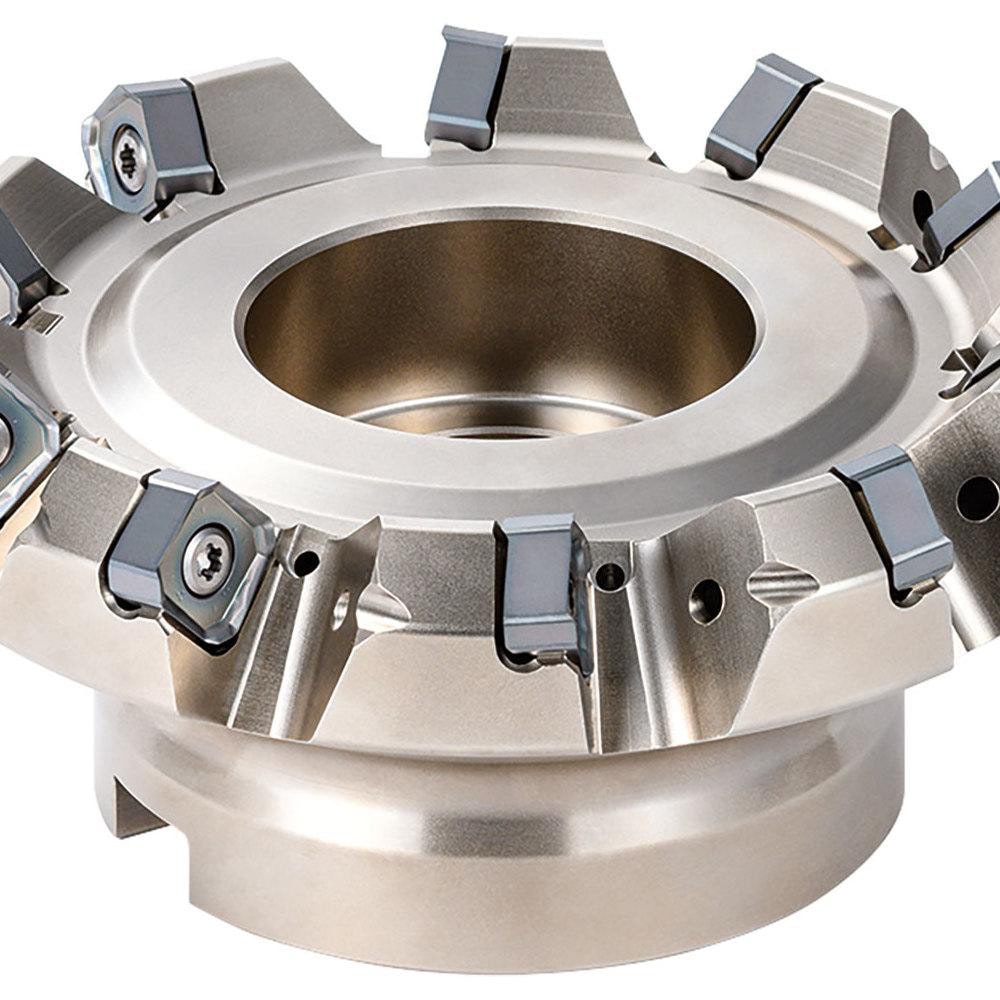

Indexable Chamfer & Angle Face Mills; Minimum Cutting Diameter (mm): 125.00; Minimum Cutting Diameter (Decimal Inch): 4.9213; Maximum Cutting Diameter (mm): 138.00; Maximum Cutting Diameter (Decimal Inch): 5.4331; Maximum Depth of Cut (mm): 6.00; Maximum
Item #: 68885474
Brand: Kyocera
Model #: THN08818
Product Specifications
| Minimum Cutting Diameter (mm) | 125.00 |
| Minimum Cutting Diameter (Decimal Inch) | 4.9213 |
| Maximum Cutting Diameter (mm) | 138.00 |
| Maximum Cutting Diameter (Decimal Inch) | 5.4331 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 45.000 |
| Compatible Insert Size Code | 1406 |
| Cutter Style | MB45 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative (Axial); Negative (Radial) |
| Series | MB45 |
| Hub Diameter (mm) | 38.100 |
| Hub Diameter (Decimal Inch) | 1.5000 |
| Keyway Width (Decimal Inch) | 15.8800 |
| Maximum RPM | 7200.000 |
| Tool Application | Chamfering; Facing |
| Tool Performance | High Performance |
| Standards | GR99 |
| Counterbore Diameter (Decimal Inch) | 2.1654 |
| Complete Insert Compatibility | SNEU1406?; SNMU1406? |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | MB45125R14T10C |
| Number Of Cutter Inserts | 10 |
| Coolant Through | Yes |
| UNSPSC Code | 23242106 |
| Minimum Cutting Diameter (mm) | 125.00 |
| Minimum Cutting Diameter (Decimal Inch) | 4.9213 |
| Maximum Cutting Diameter (mm) | 138.00 |
| Maximum Cutting Diameter (Decimal Inch) | 5.4331 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 45.000 |
| Compatible Insert Size Code | 1406 |
| Cutter Style | MB45 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative (Axial); Negative (Radial) |
| Series | MB45 |
| Hub Diameter (mm) | 38.100 |
| Hub Diameter (Decimal Inch) | 1.5000 |
| Keyway Width (Decimal Inch) | 15.8800 |
| Maximum RPM | 7200.000 |
| Tool Application | Chamfering; Facing |
| Tool Performance | High Performance |
| Standards | GR99 |
| Counterbore Diameter (Decimal Inch) | 2.1654 |
| Complete Insert Compatibility | SNEU1406?; SNMU1406? |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | MB45125R14T10C |
| Number Of Cutter Inserts | 10 |
| Coolant Through | Yes |
| UNSPSC Code | 23242106 |
| MSC Part # | 68885474 |
| Mfr Part # | THN08818 |
| Country of Origin Country of Origin is subject to change | South Korea |
