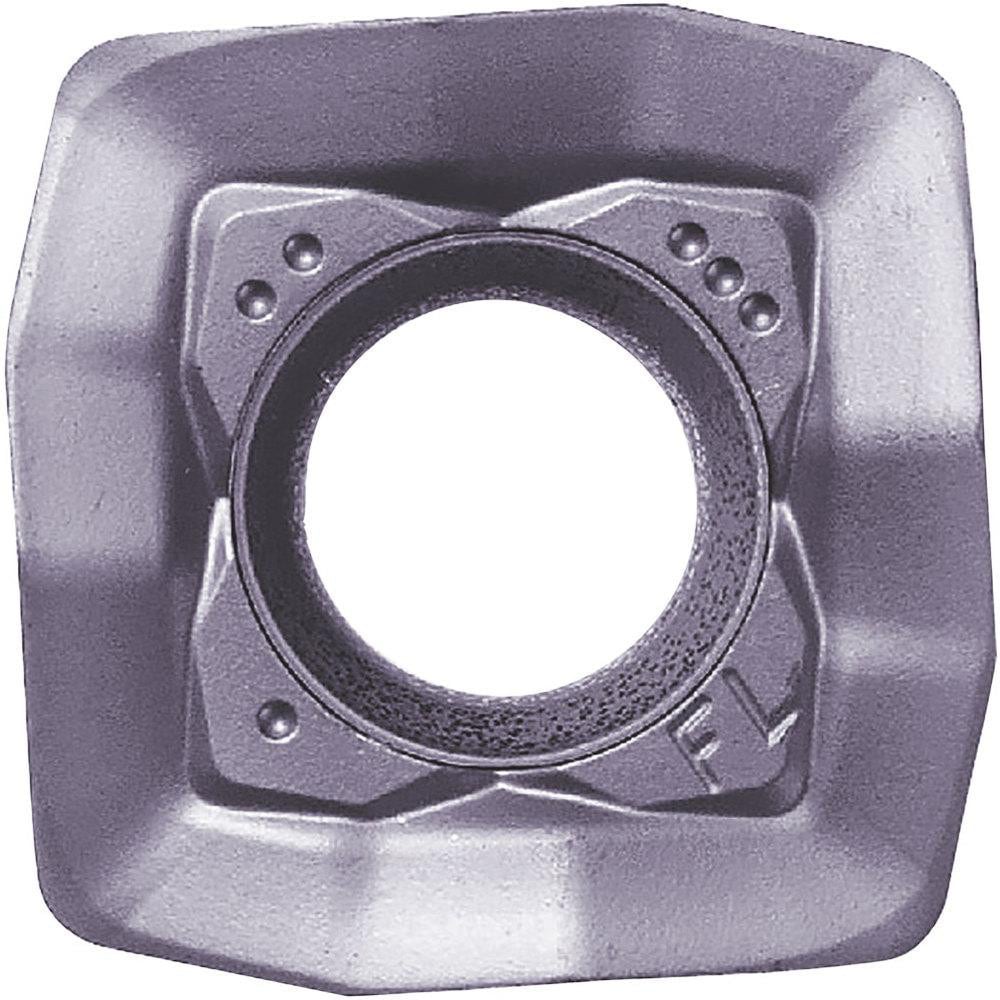

Milling Insert: SOMT100420ER-FL PR1825, Carbide
Item #: 07833379
Brand: Kyocera
Model #: TLT00100
Product Specifications
| Insert Style | SOMT |
| Insert Size | 100420 |
| Insert Material | Carbide |
| Insert Shape | Square |
| Manufacturer Grade | PR1825 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1803 |
| Thickness (mm) | 4.5800 |
| Coating/Finish | MEGACOAT NANO EX |
| Relief Angle | 16.000 |
| Inscribed Circle (Decimal Inch) | 0.4114 |
| Inscribed Circle (mm) | 10.45 |
| Corner Radius (Inch) | 5/64 |
| Insert Hand | Right Hand |
| Series | MFH-Raptor Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.6000 |
| Hole Diameter (Decimal Inch) | 0.1811 |
| Rake | Positive |
| Primary Workpiece Material | Mold Steel; Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Austenitic Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | SOMT100420ERFLPR1825 |
| Iso Code | SOMT100420ER-FL |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SOMT100420ERFLPR1825 |
| Chip Breaker | ER-FL |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.4114 |
| Width (mm - 2 Decimals) | 10.45 |
| Multi-Use Tool | Yes |
