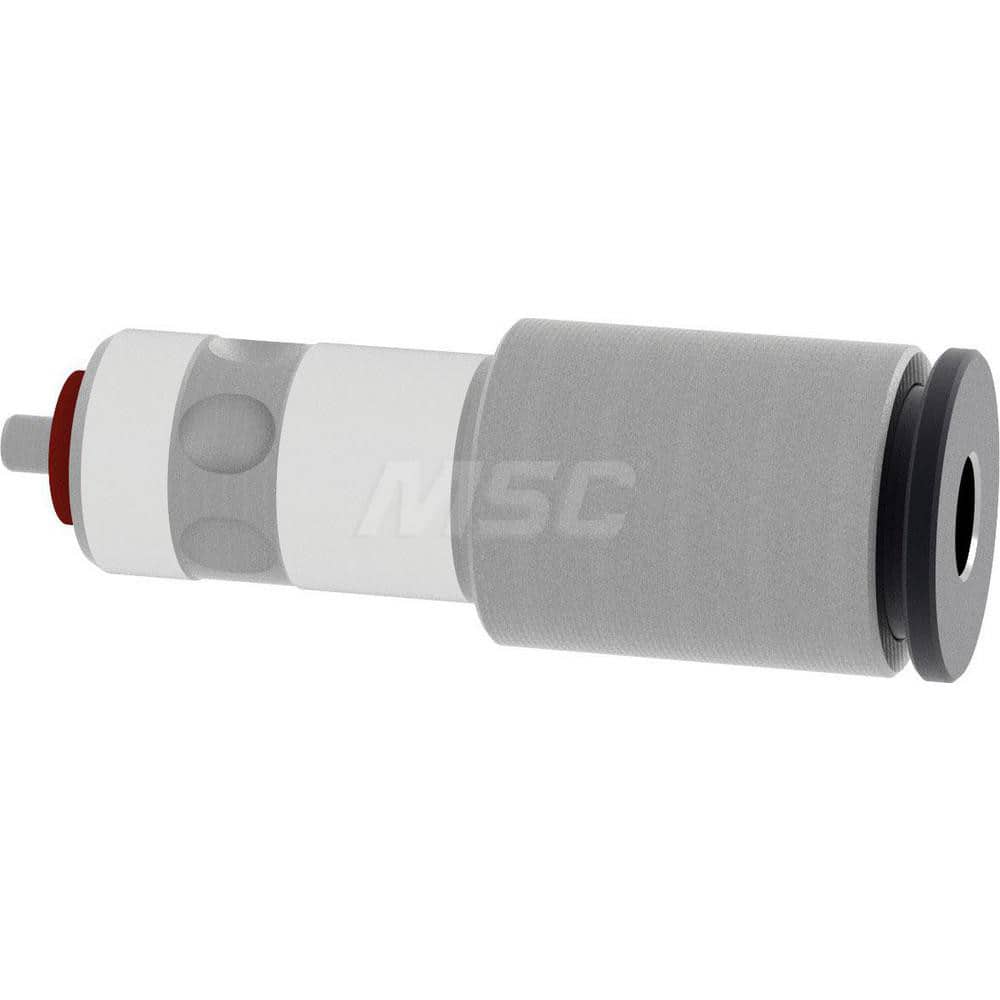

Tapping Adapter: M9 & M10 Tap, #5 Adapter 7 mm Tap Shank Dia, 5.5 mm Tap Square Size, Through Coolant, Series STH5
Item #: 20578571
Brand: Bilz
Model #: 5139731
Product Specifications
| Tap Size | M9; M10 |
| Tap Adapter Size | #5 |
| Tap Shank Diameter (Decimal Inch) | 0.2755 |
| Tap Shank Diameter (mm) | 7.00 |
| Tap Square Size (mm) | 5.50 |
| Quick-change | Yes |
| Projection (mm) | 19.00 |
| Tap Depth (mm) | 25.50 |
| Material | Hardened Tool Steel |
| Series | STH5 |
| Additional Information | Works in Base Tap Collet STL5/ER32 to form STA System (order separately) |
| DIN Standard | DIN 376 |
| Coolant Through | Yes |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.0000 |
| Tapping Style | Synchro |
