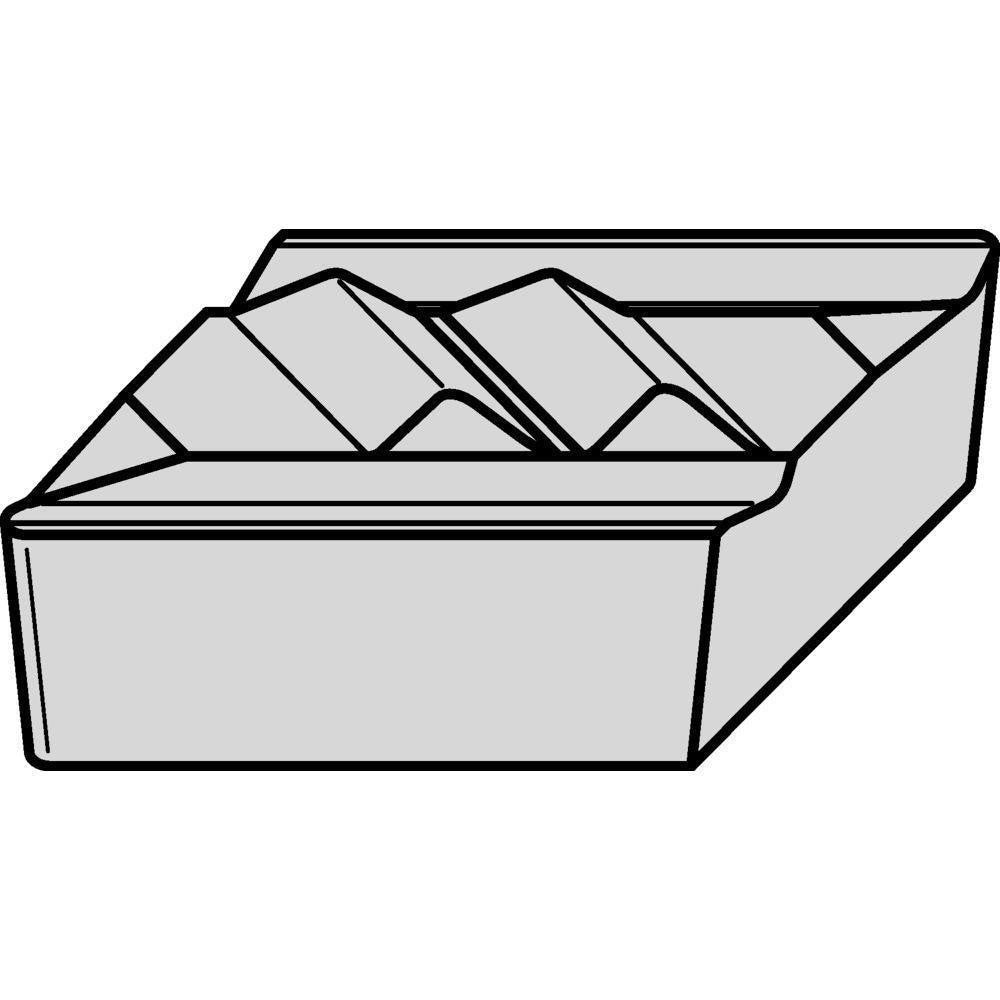

Profiling Insert: NPR5M02 KCU10B, 0.1250" Thickness
Item #: 81231573
Brand: Kennametal
Model #: 7096252
Product Specifications
| Insert Style | NPR/L |
| Insert Size Code | 5M02 |
| Insert Material | Carbide |
| Width (Inch) | 1/8 |
| Manufacturer Grade | KCU10B |
| Thickness (Inch) | 1/8 |
| Insert Height (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.1800 |
| Insert Height (mm) | 3.18 |
| Maximum Depth of Cut (Decimal Inch) | 0.1250 |
| Maximum Depth of Cut (mm) | 3.18 |
| Insert Holding Method | Clamp |
| Insert Hand | Right Hand |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
| Included Angle | 11.00 |
| Relief Angle | 8.000 |
| Coating Process | PVD |
| Number Of Cutting Edges | 2 |
| Iso Code | KCUX110302R15 |
| Rake Angle | 8.000 |
| Coating/Finish | AlTiN |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
| Width (Decimal Inch - 4 Decimals) | 0.1250 |
| Width (mm - 2 Decimals) | 3.18 |
| UNSPSC Code | 23242105 |
