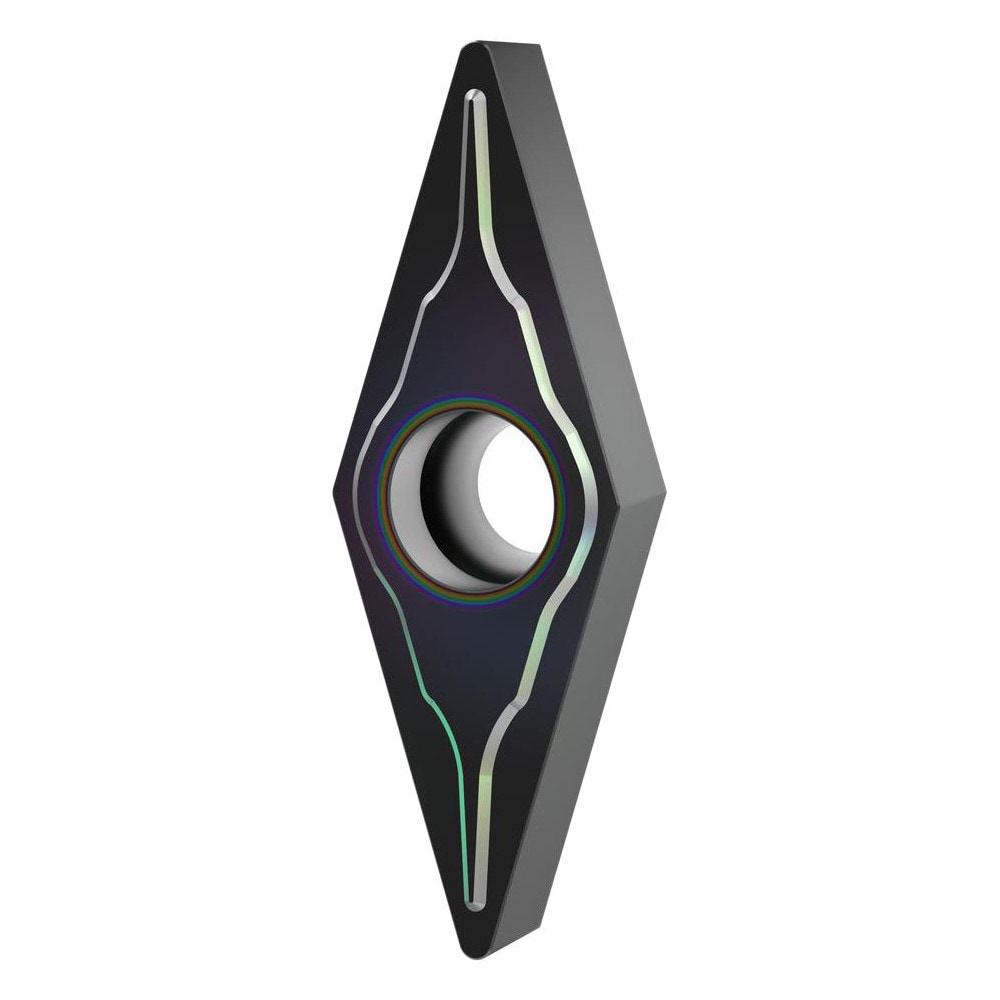

Turning Insert: VCGT221MLFS KCM25S, Carbide
Item #: 93965044
Brand: Kennametal
Model #: 7154828
Product Specifications
| ANSI Insert Code | VCGT221 |
| ISO Insert Code | VCGT110304 |
| Relief Angle | 7.000 |
| Insert Style | VCGT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.00 |
| Manufacturer Grade | KCM25S |
| Coating/Finish | AlTiN/AlCrN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Series | VCGT |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | Rhombic 35° |
| Chip Breaker Operation | Light Machining |
| Grade Characteristics | Stainless Steel (M) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.1060 |
| Insert Holding Method | Screw-On |
| Width (Inch) | 1/8 |
| Clearance Code | C |
| Tolerance Code | G |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4360 |
| Iso Code | VCGT110304MLFS |
| Manufacturers Catalog Number | VCGT221MLFS KCM25S |
| Chip Breaker | LFS |
| ANSI Size Code | 221 |
| ISO Size Code | 110304 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 221 |
| Country of Origin | Japan |
